SC6311 Scaleauto Mitsubishi Lancer Evo V – White Racing Kit Inline

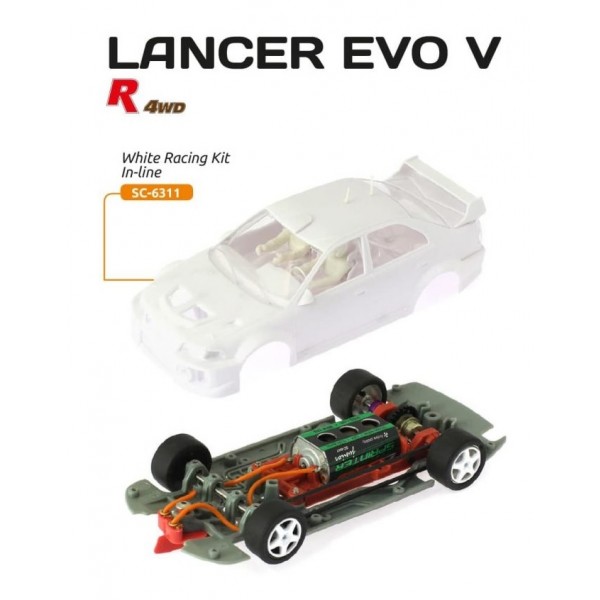

The Scaleauto Mitsubishi Lancer Evo V is a high-performance Competition Slot Car Kit for Club Racers. The Kit is supplied with an Assembled 4WD Chassis, and a White Kit Body unassembled.

The Kit Chassis supplied is the R 2.0 Inflex Chassis with Belt Driven 4 Wheel Drive and RT3 InLine Motor Mount (0.5 mm Offset). And a 18 000 rpm Sprinter Jr Long-Can motor (SC0027b), with Aluminium Rear wheels and Plastic Front Wheels.

The Mitsubishi Lancer Evo V Body supplied requires assembly and Paint to finish.

Key Features

R 2.0 4WD In Flex Chassis with RT3 Offset Inline Motor Mount
4x4 All Wheel Drive
Height adjustable Front Axle
Chassis Support for Independent Front Axle Mounting System
RT3 Inline Motor Mount
Choice of 3 or 5 Motor Mount Fixing Points
Front and Rear Suspension Adjustment System
Highly Detailed Lightweight Body with Interior
Aluminium Rear Wheels with Plastic Front Wheels
3/32 Bronze Spherical Bearings
M2.5 Grubscrew Height Adjustable Front Axle
Magnatraction System
Sprung Guide with Reinforced Guide Area
Age Suitability: 14+

Safety Notice: Warning! This product is not suitable for children under 14 Years. This is not a toy. Keep out of Reach of Children.

Specs:

Motor: SC0027b Sprinter Jr, Long-Can Motor, 18,000 rpm and 310 g/cm torque @ 12v
Motor Mount: 25º RT3 Anglewinder Motor Mount 0.5 mm Offset (SC6536c Hard Red)
Motor Configuration: Rear Pod Mounted Angle Winder Motor
Chassis: R 2.0 4WD – Inflex Chassis - Grey
Pinion: 9T Nylon
Crown Gear: 31T Nylon Spur Gear
Gear Ratio: 9:31
Bushes: Spherical Bronze
Guide: Red Sprung Swivel Guide (SC1608)
Magnatraction: Rectangular bar Magnet
Overall Length: 139 mm
Car Width: 62 mm
Car Height: 43 mm
Wheelbase: 78 mm
Rear Axle to Guide Distance:105 mm
Body Weight: 25 g
Chassis Weight: 67 g
Total Weight: 92 g
Front Axle: Height Adjustable with M2.5 screws
Axle/Hub Width: 60 mm Front: 62.5 mm Rear
Axle Diameter: 2.38mm (3/32”)
Front Hubs: 17.5 x 9mm Plastic
Rear Hubs: 16.9 x 8.5 mm Aluminium
Front Tyre Diameter and Width: 18 x 9 mm Slick
Rear Tyre Diameter and Width: 19 x 10.5 mm Slick
Digital: No but upgradeable
Body: High Detail with detailed interior
Driver: Driver and Navigator figures
Lights: No
Class: Rally
Scale: 1/32

Contents

1 x SC6311 Scaleauto Mitsubishi Lancer Evo V – White Racing Kit Inline

Model: SC6311
Issued: May 2023
Shipping Weight: 0.40 kgs
Manufactured by: Scaleauto
