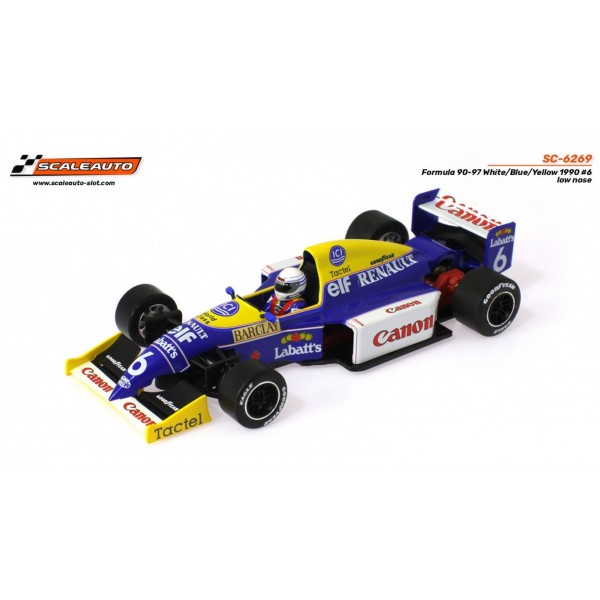

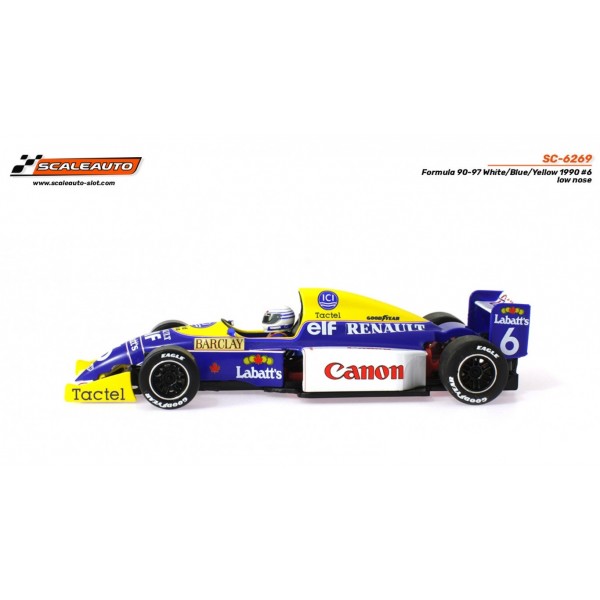

SC6269 Scaleauto Formula 90-97 – #6 Canon 1990

The Scaleauto Formula 90-97 Cars are Competition Slot Cars designed to replicate Formula 1 Cars from the 90s era. They are High Performance Slot Cars with Technical features designed for Better Acceleration and Handling, with ease of Tuneability. This release of the Scaleauto Formula 90-97 Cars, replicate the 1990 Williams FW13b. The #5 Car was driven by Thierry Boutsen and the #6 Car by Riccardo Patrese.

The Cars feature stunning paint work with Sharp Tampo Printing. With an Extra Thin Lightweight, Highly Detailed Body, it is only 0.65mm thick allowing for a Lower Center of Gravity, with better Acceleration and Faster Cornering. The new Formula 90-97 Chassis is designed for competition, with Adjustable Height Front and Rear Axles, Front and Rear Body Height Adjustment, and 0.5 mm Offset Motor Mount. The Cars are fitted with Aluminium Wheels Front and Rear, with Zero Grip Front Tires and AS25 Supergrip Rear Tires.

These R Series Cars come fully assembled and Ready to Run, with a range of optional tuning parts available.

Key Features

High Performance for Competition
Low Center of Gravity Chassis for better handling and acceleration
Offset (0.5mm) Motor Mount with Self Centering, Spherical Bearings
Motor Mount with 2,4 or 6 Suspension Points
High Torque 21 500 rpm Long Can Motor
New Lightweight Crown Gear and Ergal Stopper
Non-Binding Spherical Bronze Bushes for Rear Axle
Adjustable Height Front and Rear Axles
Front and Rear Adjustable Body Float
Special Half Threaded Body Screws for Smooth Body Float Adjustment
Zero Grip Front Tires and Super Grip AS25 Rear Tires
Spring Suspension – Optional Upgrade
Chassis available in Hard and Medium Compounds (Standard: Hard/Black)
Aluminium Front and Rear Wheels
Optional Sponge Rubber tires (SC2028/SC2029/SC2030)
Highly Detailed Body with driver figure
Extra Thin 0.65mm Lightweight Body
Magnatraction System
Sprung Guide
Digital Chip Compatible
Age Suitability: 14+

Safety Notice: Warning! This product is not suitable for children under 14 Years. This is not a toy. Keep out of Reach of Children.

Specs

Motor: Scaleauto Sprinter 2, Long-Can Motor, 21,500 rpm and 300 g/cm torque @ 12v, 14.5 gr Magnetic Effect (SC0025b)
Motor Mount: In-Line Motor Mount – 0.5mm Offset (SC6523C Hard Red)
Motor Configuration: Mid Mounted In-Line
Chassis: Hard Chassis (SC6670a)
Pinion: 10T Nylon (SC1010)
Crown Gear: 26T Polyamide In-Line Crown Gear with Lightweight Hub (SC1112R)
Gear Ratio: 10:26
Bushes: Spherical Bronze
Guide: Red Sprung Swivel Guide (SC1608)
Magnatraction: Rectangular bar Magnet
Overall Length: 140mm
Car Width: 67mm
Car Height: 33mm
Wheelbase: 90.5mm
Rear Axle to Guide Distance: 111mm
Body Weight: 9.2g
Chassis Weight: 69.5g
Weight: 79g
Front Axle: Height Adjustable with M2.5 screws
Axle/Hub Width: 66.5 mm Front: 67.5 mm Rear
Axle Diameter: 2.38 mm (3/32”) x 55 mm (SC1211)
Front Hubs: Ø14 x 10 mm Lightweight Aluminium with M2.5 grubscrew (SC4083F25)
Rear Hubs: Ø14 x 13 mm Lightweight Aluminium with M2.5 grubscrew (SC4084F25)
Front Tyre Diameter and Width: Ø18 x 10 mm Zero Grip Slick (SC4762)
Rear Tyre Diameter and Width: Ø20 x 13 mm AS25 Supergrip Slick (SC4763)
Axle: 55mm Hardened Steel Axle
Digital: No but upgradeable
Body: High Detail with
Driver: Detailed Driver and Cockpit
Lights: No
Class: Formula 1
Scale: 1/32

Contents

1 x SC6269 Scaleauto Formula 90-97 – #6 Canon 1990

Model: SC6269
Issued: August 2023
Shipping Weight: 0.35 kgs
Manufactured by: Scaleauto
