SC6259A Scaleauto Formula 90-97 White Racing Kit - High Nose

The Scaleauto Formula 90-97 Range of Cars are based on the Formula 1 Cars that competed in the 90’s Grand Prix’s. These cars are designed to replicate the 3.0 and 3.5 litre, Engined cars that competed after the banning of the Turbo Charged Cars that competed from 1986-1989.

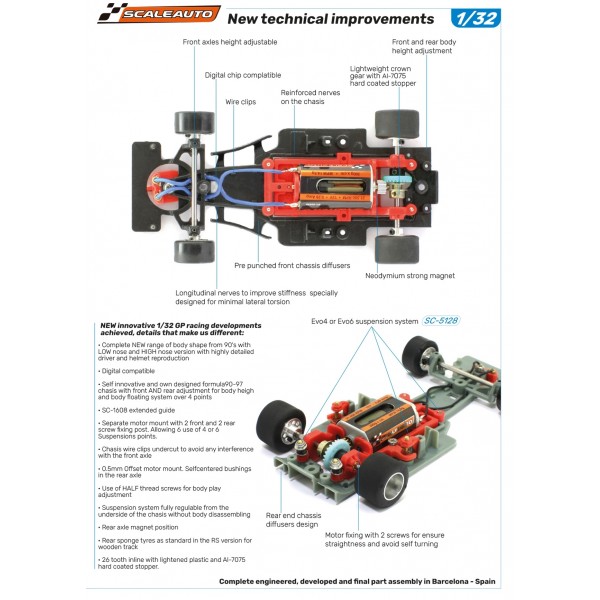

There are two Body Styles in the Formula 90-97 Range of Cars, Low Nose and High Nose, sharing a common Chassis. The Lightweight, High Detail Body, is only 0.65mm thick allowing for a Low Center of Gravity, and better Acceleration with Faster Cornering. The new Formula 90-97 Chassis is designed for competition, with Adjustable Height Front Axle, Front and Rear Body Height Adjustment, and 0.5 mm Offset Motor Mount. The Car is fitted with Aluminium Hubs Front and Rear, with Zero Grip Front Tires and AS25 Supergrip Rear Tires.

There are also Optional Tuning Parts Available for this Chassis.

Short Suspension Set (SC5128)
Chassis Suspension Arms (SC6534)
Sponge Rubber Tires for Plastic Track (SC2028 ProComp2)
Sponge Rubber Tires for Wooden Track (SC2029 ProComp3)

Key Features

High Performance for Competition
Low Center of Gravity Chassis for better handling and acceleration
Offset (0.5mm) Motor Mount with Self Centering, Spherical Bearings
Motor Mount with 2,4 or 6 Suspension Points
High Torque 21 500 rpm Long Can Motor
New Lightweight Crown Gear and Ergal Stopper
Non-Binding Spherical Bronze Bushes for Rear Axle
Adjustable Height Front and Rear Axles
Front and Rear Adjustable Body Float
Special Half Threaded Body Screws for Smooth Body Float Adjustment
Zero Grip Front Tires and Super Grip AS25 Rear Tires
Spring Suspension – Optional Upgrade
Chassis available in Hard and Medium Compounds (Standard: Hard/Black)
Aluminium Front and Rear Wheels
Optional Sponge Rubber tires (SC2028/SC2029/SC2030)
Highly Detailed Body with driver figure
Extra Thin 0.65mm Lightweight Body
Magnatraction System
Sprung Guide
Digital Chip Compatible
Age Suitability: 14+

Safety Notice: Warning! This product is not suitable for children under 14 Years. This is not a toy. Keep out of Reach of Children.

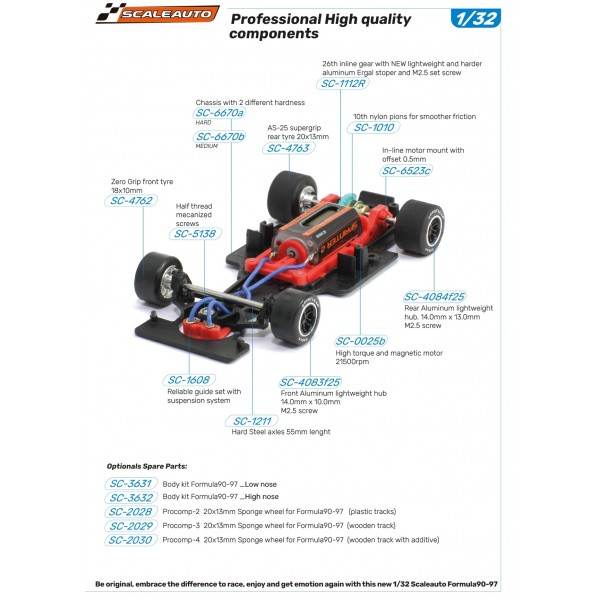

Specs:

Motor: Scaleauto Sprinter 2, Long-Can Motor, 21,500 rpm and 300 g/cm torque @ 12v, 14.5 gr Magnetic Effect (SC0025b)
Motor Mount: In-Line Motor Mount – 0.5mm Offset (SC6523C Hard Red)
Motor Configuration: Mid Mounted In-Line
Chassis: Hard Chassis (SC6670a)
Pinion: 10T Nylon (SC1010)
Crown Gear: 26T Polyamide Crown Gear with Lightweight Hub (SC1112R)
Gear Ratio: 10:26
Bushes: Spherical Bronze
Guide: Red Sprung Swivel Guide (SC1608)
Magnatraction: Rectangular bar Magnet
Overall Length: 140mm
Car Width: 67mm
Car Height: 33mm
Wheelbase: 90.5mm
Rear Axle to Guide Distance: 111mm
Body Weight: 9.2g
Chassis Weight: 69.5g
Weight: 79g
Front Axle: Height Adjustable with M2.5 screws
Axle/Hub Width: 66.5 mm Front: 67.5 mm Rear
Axle Diameter: 2.38 mm (3/32”) x 55 mm (SC1211)
Front Hubs: Ø14 x 10 mm Lightweight Aluminium with M2.5 grubscrew (SC4083F25)
Rear Hubs: Ø14 x 13 mm Lightweight Aluminium with M2.5 grubscrew (SC4084F25)
Front Tyre Diameter and Width: Ø18 x 10 mm Zero Grip Slick (SC4762)
Rear Tyre Diameter and Width: Ø20 x 13 mm AS25 Supergrip Slick (SC4763)
Digital: No but upgradeable
Body: High Detail with
Driver: Detailed Driver and Cockpit
Lights: No
Class: Formula 1
Scale: 1/32

Contents

1 x SC6259A Scaleauto Formula 90-97 White Racing Kit - High Nose

Model: SC6259A
Issued: November 2021
Shipping Weight: 0.35 kgs
Manufactured by: Scaleauto
