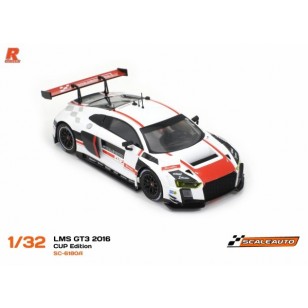

SC6180a Scaleauto Audi R8 LMS GT3 Cup Edition – White/Red

Audi R8 LMS GT3 Cup Edition with R-2017 Double In-Flex R-Chassis (Anglewinder Configuration)

The Scaleauto Audi R8 LMS GT3 Cup Edition is a high performance Competition slot car for Club Racers. This car is supplied as a kit, with a fully detailed Body, Assembled Rolling Chassis, Soft Rubber Tires and Decal Sheet. This car is fitted with the new improved R-2017 Doube In-Flex R-Chassis with RT3 - 25º Anglewinder Motor Pod. The car also is fitted with the SC0011b - 20 000 rpm Tech 1 Long Can motor, Aluminium Rear wheels and Plastic Front Wheels. The Scaleauto Audi R8 features a detailed, lightweight body and interior, with high quality paint finish with sharp tampo printing.

Key Features

New updated R-2017 In-Flex R-Chassis
Adjustable Torsion Points
Height adjustable front axle
RT3 25º Anglewinder Motor Pod (SC6528 -Red Hard)
Thin, Lightweight, High Detail, Body and Interior
Neodymium Magnatraction System
Spring Guide
Lightened Anodised aluminium axle stopper
New fasteners for Engine Support and Bodywork
Decal Sheet with Race Numbers and Scaleauto Logos
New screws for motor pod and body mounts
Age Suitability: 14+

Safety Notice: Warning! This product is not suitable for children under 14 Years. This is not a toy. Keep out of Reach of Children.

The new improved R-2017 Double In-Flex R-Chassis

Better handling and performance
Support for the new RT3 - 25° Motor Mounts
Support for independent front axle mounting system
Thinner, lighter and stronger
Height adjustable front axle
Improved wire fixing path
In-Flex chassis with adjustable torsion points
Reinforced front guide mount
Use of M2.5mm grubscrews
Choice of 3 or 5 fixing points for Motor Mounts

Specs

Motor: Scaleauto SC0011b Tech 1 20 000 rpm Long Can motor, 285 g/cm torque @ 12v
Motorpod: New RT3 Anglewinder Motorpod (SC6528 Hard Red)
Motor Configuration: Rear Pod Mounted Angle Winder Motor
Chassis: R-2017 In-Flex R-Chassis
Pinion: 11T Plastic
Spur Gear: 27T
Gear Ratio: 11:27
Bushes: Metal
Guide: Red Sprung Swivel Guide
Magnatraction: Rectangular Neodymium bar Magnet
Overall Length: mm
Car Width: mm
Car Height: mm
Wheelbase: mm
Weight: g
Front Axle: Height Adjustable with M2.5 screws
Axle/Hub Width: mm Front: mm Rear
Axle Diameter: 2.38mm (3/32”) Calibrated Axles
Front Hubs: 17.2 x 9mm Plastic
Rear Hubs: 17.5 x 10mm Aluminium
Front Tyre Diameter and Width: 18 x 9mm
Rear Tyre Diameter and Width: 18.5 x 9.5mm
Digital: No but upgradeable
Body: Lightweight High Detail
Driver: driver figure
Lights: No
Class: Rally
Scale: 1/32

Model: SC6180a
Issued: August 2018
Shipping Weight: 0.30kgs
Manufactured by: Scaleauto
