RS0250 Revo Slot Alfa Romeo GTA 1300 Junior #83 Jagermeister - DRM 1972

The Revo Slot Alfa Romeo GTA is a Race Ready, High Performance, Ready to Run Slot Car.
With a Black Anodised, CNC Aluminium Chassis, Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The Alfa Romeo GTA has independent front axles, with Ball Bearings fitted to the rear axles, Floating Body Mount System, and a Spring Swivel Guide. It is supplied with a Traction Magnet (not fitted), and a Deep Guide Blade for Routed Wooden Tracks.

Car: Alfa Romeo GTA 1300 Junior #83 Jagermeister
Driver: Rainer Maschke
Race: Deutsche Rennsport Meisterschaft DRM 1972
Team: Wolfenbuttel Racing Team

Chassis developed by BRM

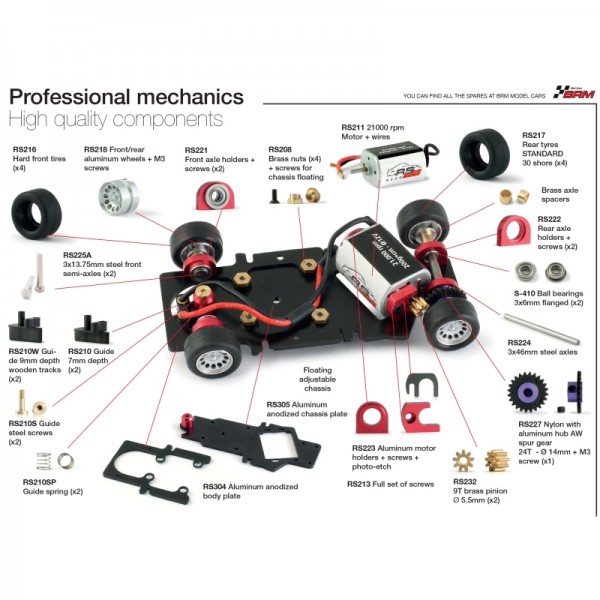

All Revo Slot, Chassis are Designed and Developed by BRM, and Assembled with BRM Components. The High Performance, Competition Chassis are well supported with a full range of Replacement and Upgrade parts Available. For ease of Maintenance a Full Colour, Parts Manual is included with each Car.

Key Features

Anodised CNC Aluminium Chassis with floating Body Mounts
Ball Bearing Rear Axle with Independent Bushed Front Axles
Aluminium Wheels Front and Rear
Aluminium Motor Mount and Axle Carriers
Highly Detailed body
Type A Body
Lightweight interior with Driver figure
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years

Specs

Motor: FK130 - 21 000 rpm, 200 g/cm Short-Can Motor (RS211)
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 9T Brass Pinion Ø5.5 mm (RS232)
Spur Gear: 24T Nylon Anglewinder Spur Gear Ø14 mm with Aluminium Hub (RS227)
Gear Ratio: 9:24
Bushes/Bearings: Ball Bearings Front and Rear 3 x 6 mm Flanged (S410)
Guide: Spring Swivel Guide (RS210 - 7 mm Fitted/ RS210W - 9 mm Supplied)
Magnatraction: Not fitted (Magnet Supplied)
Overall Length: 128 mm
Wheelbase: 74 mm
Car Width: 64 mm
Car Height: 36 mm
Chassis Weight: 59 g
Body Weight: 20 g
Total Weight: 79 g
Axle/Hub Width: 54.5 mm Front and 52.5 mm Rear
Axle Diameter: Ø3 mm x 46 mm Hardened Steel (RS224)
Wheels: Aluminium Ø11 x 8.0 mm Front and Rear (RS218)
Front Tyre Diameter and Width: Ø17 x 9 mm Low Profile Hard Compound (RS216)
Rear Tyre Diameter and Width: Ø16.5 x 9 mm - Stock 30 Shore (RS217)
Digital: No but Upgradeable
Body: High Detail body with Lightweight interior - Type A Body (RSA)
Driver: Driver figure
Lights: No
Class: Classic
Scale: 1/32

Contents

1 x RS0250 Revo Slot Alfa Romeo GTA 1300 Junior #83 Jagermeister - DRM 1972
1 x Deep Wood Guide
1 x Rectangular Bar Magnet
Upgrade Parts and Spares Manual Included

Model: RS0250
Issued: Jan 2025
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
