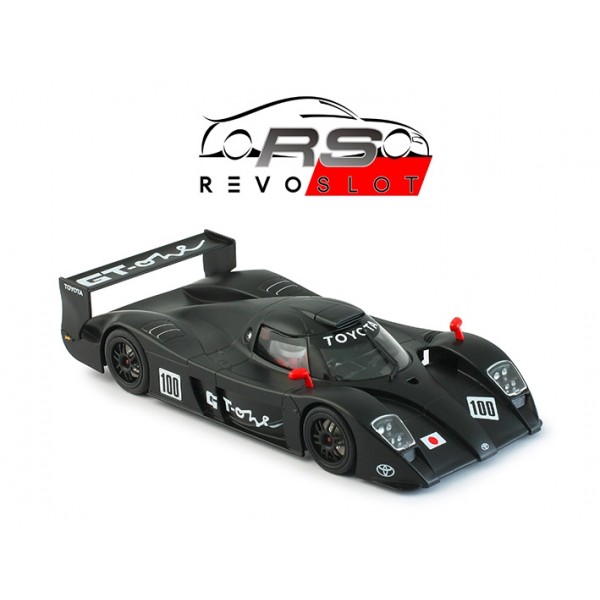

RS0211 Revo Slot Toyota GT One - #100 Black Limited Edition

The Revo Slot Toyota GT-One is a Race Ready, High Performance, Ready to Run Slot Car.
With a Black Anodised, CNC Aluminium Chassis, Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. There are Ball Bearings fitted to both Front and Rear axles, Floating Body Mount System, and a Spring Swivel Guide. The Toyota GT-One is supplied with a Traction Magnet (not fitted), and a Deep Guide Blade for Routed Wooden Tracks.

Revo Slot

The Revo Slot Car Company was formed in partnership with BRM, with the aim of producing High Quality 1/32 Scale Slotcars for the Racer or Enthusiast.

The BRM developed chassis consists of a, CNC Aluminium Chassis with a floating body mount system. The chassis is fitted with Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The car is also supplied with Ball Bearings fitted front and rear with a Spring Swivel Guide. A deep guide for wooden routed tracks is also supplied with the Car.

The Revo Slot Cars are very well designed and constructed, with excellent paint finish and tampo printing. They perform well and are great to drive. They have very rapidly become very popular among Racers and Enthusiasts a like.

Key Features

Limited Edition
Highly Detailed body
Lightweight Detailed Cockpit with Driver figure
Anodised CNC Aluminium Chassis with floating body mount
Precision Ball Bearings front and Rear
Aluminium Wheels Front and Rear
Aluminium Motor mount and Axle carriers
Decals
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years

Specs

Motor: Revo Slot 21 000rpm FK130 Motor 200gcm @ 12v (RS211)
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 12T Brass Pinion Ø6.4 mm (RS212)
Spur Gear: 33T Nylon Anglewinder Spur Gear Ø12.4 mm (S419)
Gear Ratio: 12:33
Bearings: 3 x 6 mm Flanged Ball Bearings Front and Rear (S410)
Guide: Spring Swivel Guide 20.6 x 7 mm Fitted (RS210) + 20.7 x 9 mm Deep Guide Supplied (RS210W)
Axle Diameter: Ø3mm x 50 mm Calibrated Steel Axles (RS209)
Wheels: Ø14.8 x 9.3 mm Front (RS157) and Ø14.8 x 10.5 mm Rear (RS158)
Front Tyre Diameter and Width: Ø20 x 9 mm Stock Low Profile (RS201M)
Rear Tyre Diameter and Width: Ø21 x 11 mm Wide Standard Tires 30 Shore(RS202W)
Magnatraction: No (Rectangular Traction Magnet Supplied)
Overall Length: 151 mm
Wheelbase: 87 mm
Car Width: 63.5 mm
Car Height: 33 mm
Axle/Hub Width: 64 mm Front and 64 mm Rear
Body Weight: 24 g
Chassis Weight: 79 g
Total Weight: 103g
Digital: No but Upgradeable
Body: High Detail body
Driver: Driver figure
Lights: No
Class: LMGTP/GT1
Scale: 1/32

Contents

1 x RS0211 Revo Slot Toyota GT One - #100 Black Limited Edition
1 x Deep Wood Guide
1 x Magnet
Parts Manual

Model: RS0211
Issued: Feb 2024
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
