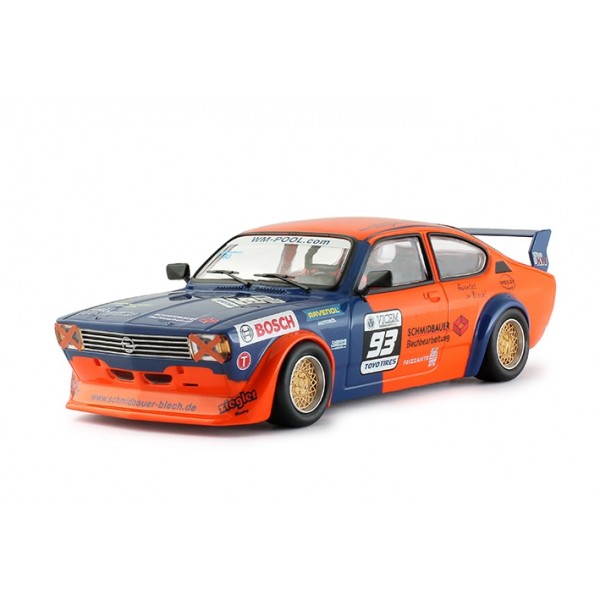

RS0169 Revo Slot Opel Kadet GT/E – #93 Schmidbauer – HistoCup 2014

The Revo Slot Opel Kadet GT/E is a Race Ready, High Performance, Ready to Run Slot Car. With a Black Anodised, CNC Aluminium Chassis, Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The Opel Kadet has independent front axles, with Ball Bearings fitted to the rear axles, Floating Body Mount System, and a Spring Swivel Guide. It is supplied with a Traction Magnet (not fitted), and a Deep Guide Blade for Routed Wooden Tracks.

Driver: Bernhard Schmidbauer
Car: Opel Kadet GT/E – #93 Schmidbauer
Race: HistoCup 2014

Chassis developed by BRM

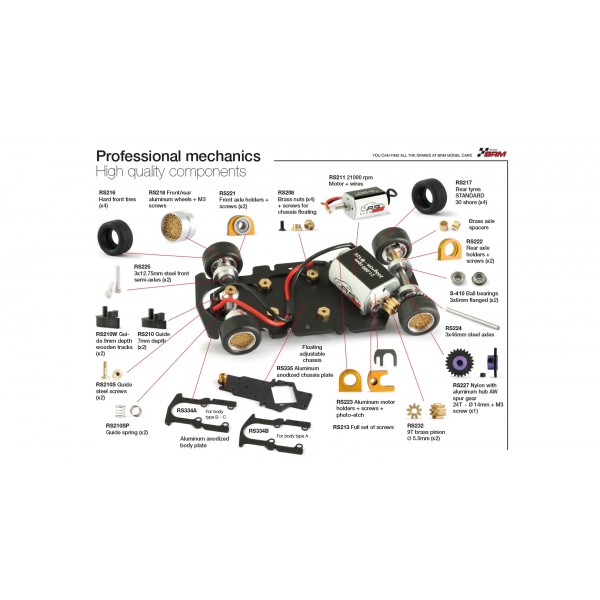

All Revo Slot, Chassis are Designed and Developed by BRM, and Assembled with BRM Components. The High Performance, Competition Chassis are well supported with a full range of Replacement and Upgrade parts Available. For ease of Maintenance a Full Colour, Parts Manual is included with each Car.

Key Features

Anodised CNC Aluminium Chassis with floating Body Mounts
Ball Bearing Rear Axle with Independent Bushed Front Axles
Aluminium Wheels Front and Rear
Aluminium Motor Mount and Axle Carriers
Highly Detailed body
Lightweight interior with Driver and Navigator figures
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years

Specs

Motor: FK130 - 21 000 rpm, 200 g/cm Short-Can Motor (RS211)
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 9T Brass Ø5.5 mm (RS232)
Spur Gear: 24T Nylon Anglewinder Spur Gear with Aluminium Hub - Ø14 mm (RS227)
Gear Ratio: 9:24
Bushes/Bearings: Ball Bearings Rear 3 x 6 mm Flanged (S410)
Guide: Spring Swivel Guide (RS210 - 7 mm Fitted / RS210W - 9 mm Supplied)
Magnatraction: Not fitted (Magnet Supplied)
Overall Length: 129 mm
Wheelbase: 75 mm
Car Width: 55 mm
Car Height: 38 mm
Chassis Weight: 60 g
Body Weight: 22 g
Total Weight: 82 g
Axle/Hub Width: 54 mm Front and 54 mm Rear
Axle Diameter: Ø3 mm x 46 mm Hardened Steel (RS224)
Wheels: Aluminium Ø11 x 8.0 mm Front and Rear (RS218)
Front Tyre Diameter and Width: Ø16.5 x 8 mm Low Profile Hard Compound (RS216)
Rear Tyre Diameter and Width: Ø16.5 x 8 mm - Stock 30 Shore (RS217)
Digital: No but Upgradeable
Body: High Detail body with Lightweight interior
Driver: Driver and Navigator figures
Lights: No
Class: Rally
Scale: 1/32

Contents

1 x RS0169 Revo Slot Opel Kadet GT/E – #93 Schmidbauer – HistoCup 2014
1 x Deep Wood Guide
1 x Rectangular Bar Magnet
Upgrade Parts and Spares Manual Included

Model: RS0169
Issued: August 2023
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
