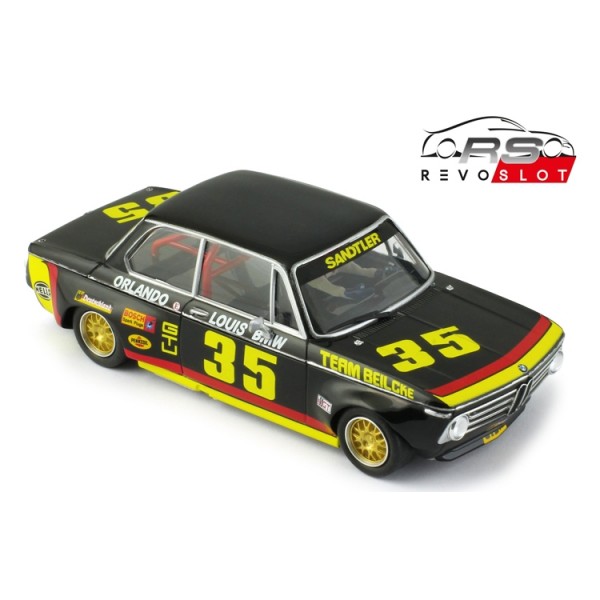

RS0158 Revo Slot BMW 2002ti #35 - 12Hr Sebring 1978

The Revo Slot BMW 2002ti is a Race Ready, High Performance, Ready to Run Slot Car.
With a Black Anodised, CNC Aluminium Chassis, Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The Chassis features Ball Bearings fitted to the Rear axle, Independent Front Stub axles and a Floating Body Mount System, with a Spring Swivel Guide. The BMW 2002ti is supplied with a Traction Magnet (not fitted), and a Deep Guide Blade for Routed Wooden Tracks.

Revo Slot

The Revo Slot Car Company was formed in partnership with BRM, with the aim of producing High Quality 1/32 Scale Slotcars for the Racer or Enthusiast.

The BRM developed chassis consists of a, CNC Aluminium Chassis with a floating body mount system. The chassis is fitted with Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The car is also supplied with Ball Bearings fitted front and rear with a Spring Swivel Guide. A deep guide for wooden routed tracks is also supplied with the Car.

The Revo Slot Cars are very well designed and constructed, with excellent paint finish and tampo printing. They perform well and are great to drive. They have very rapidly become very popular among Racers and Enthusiasts a like.

Driver: B.Beilcke (D) / S.Grinbold (USA) / A.Gebhardt (USA)
Car: BMW 2002ti #35
Race: 12hr Sebring 1978
Team: Team Beilcke – Louis BMW Orlando

Key Features

Highly Detailed body
Lightweight Detailed Cockpit with Driver figure
Anodised CNC Aluminium Chassis with floating body mount
Independent Front Stub Axles
Precision Ball Bearings fitted to Rear Axle
Aluminium Wheels Front and Rear
Aluminium Motor mount and Axle carriers
Decals
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years

Specs

Motor: Revo Slot 21 000rpm FK130 Motor 200gcm @ 12v (RS211)
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 9T Brass Pinion Ø5.5 mm (RS232)
Spur Gear: 24T Nylon Anglewinder Spur Gear Ø14 mm (RS227)
Gear Ratio: 12:33
Bearings: 3 x 6 mm Flanged Ball Bearings Front and Rear (S410)
Guide: Spring Swivel Guide 20.6 x 7 mm Fitted (RS210) + 20.7 x 9 mm Deep Guide Supplied (RS210W)
Axle Diameter: Ø3mm x 46 mm Calibrated Steel Axles (RS224)
Wheels: Front and Rear Ø11 x 8 mm (RS218)
Front Tyre Diameter and Width: Ø17 x 8 mm Stock Low Profile (RS216)
Rear Tyre Diameter and Width: Ø16.5 x 8 mm Standard Tires 30 Shore(RS217)
Magnatraction: No (Rectangular Traction Magnet Supplied)
Overall Length: 131 mm
Wheelbase: 79 mm
Car Width: 55 mm
Car Height: 33 mm
Axle/Hub Width: 52 mm Front and 51.5 mm Rear
Body Weight: 23 g
Chassis Weight: 61 g
Total Weight: 84 g
Digital: No but Upgradeable
Body: High Detail body
Driver: Driver figure
Lights: No
Class: Endurance
Scale: 1/32

Contents

1 x RS0158 Revo Slot BMW 2002 ti #35 - 12Hr Sebring 1978
1 x Deep Wood Guide
1 x Magnet
Parts Manual

Model: RS0158
Issued: November 2023
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
