RS0142 Revo Slot Ford Escort MkI RS1600 – White Kit

The Revo Slot Ford Escort MkI White kit is supplied, with an assembled Rolling Chassis and an Unassembled White Body in Kit form. The Body requires assembly and paint to complete.

Chassis developed by BRM

All Revo Slot, Chassis are Designed and Developed by BRM, and Assembled with BRM Components. This High Performance, Competition Chassis is well supported with a full range of Replacement and Upgrade parts Available. For ease of Maintenance a Full Colour, Parts Manual is included with each Car.

Key Features

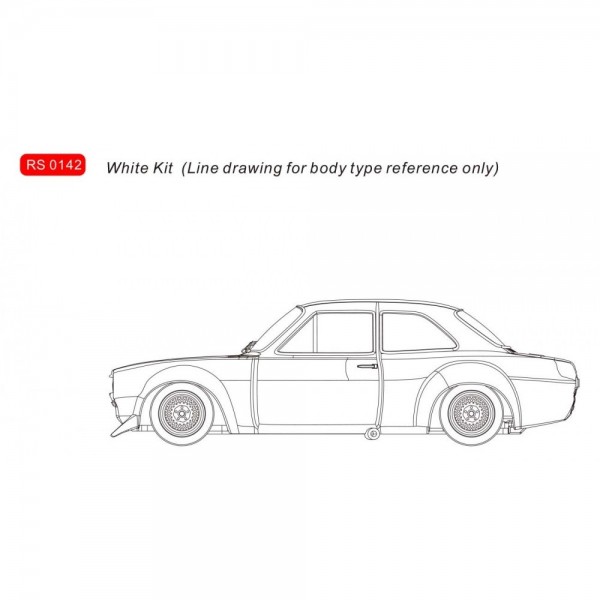

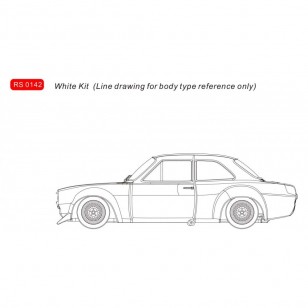

White Body Kit
Body requires Assembly and Paint

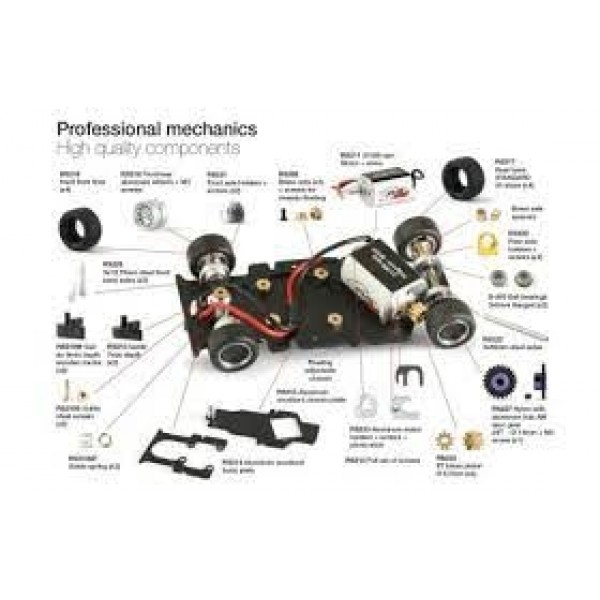

Assembled Rolling Chassis
Anodised CNC Aluminium Chassis with floating Body Mounts
Ball Bearing Rear Axle with Independent Bushed Front Axles
Aluminium Wheels Front and Rear
Aluminium Motor Mount and Axle Carriers
Highly Detailed body
Lightweight interior with Driver and Navigator figures
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years

Specs

Motor: FK130 - 21 000 rpm, 200 g/cm Short-Can Motor (RS211)
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 9T Brass Ø5.5 mm (RS232)
Spur Gear: 24T Nylon Anglewinder Spur Gear with Aluminium Hub - Ø14 mm (RS227)
Gear Ratio: 9:24
Bushes/Bearings: Ball Bearings Rear 3 x 6 mm Flanged (S410)
Guide: Spring Swivel Guide (RS210 - 7 mm Fitted / RS210W - 9 mm Supplied)
Magnatraction: Not fitted (Magnet Supplied)
Overall Length: 123 mm
Wheelbase: 76 mm
Car Width: 55 mm
Car Height: 38 mm
Chassis Weight: 61 g
Body Weight: 23 g
Total Weight: 84.5 g
Axle/Hub Width: 52 mm Front and 52 mm Rear
Axle Diameter: Ø3 mm x 46 mm Hardened Steel (RS222)
Wheels: Aluminium Ø11 x 8.0 mm Front and Rear (RS218)
Front Tyre Diameter and Width: Ø16.5 x 8 mm Low Profile Hard Compound (RS216)
Rear Tyre Diameter and Width: Ø16.5 x 8 mm - Stock 30 Shore (RS217)
Digital: No but Upgradeable
Body: High Detail body with Lightweight interior
Driver: Driver and Navigator figures
Lights: No
Class: Rally
Scale: 1/32

Contents

1 x RS0142 Revo Slot Ford Escort MkI RS1600 – White Kit
1 x Deep Wood Guide
1 x Rectangular Bar Magnet

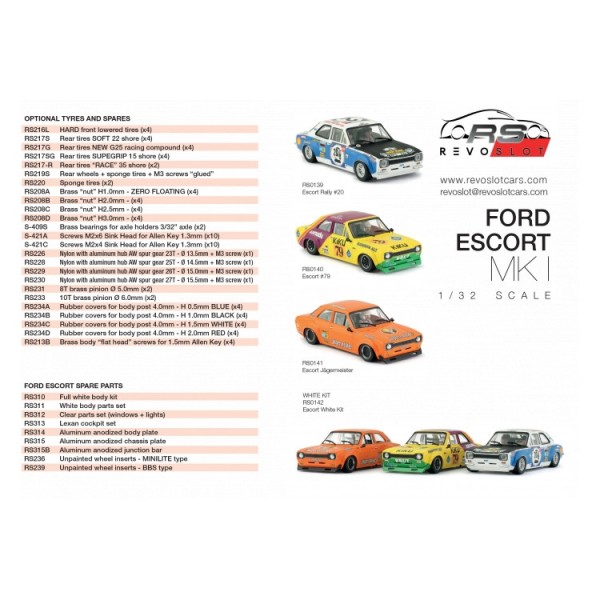

Upgrade Parts and Spares Manual Included

Model: RS0142
Issued: September 2022
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
