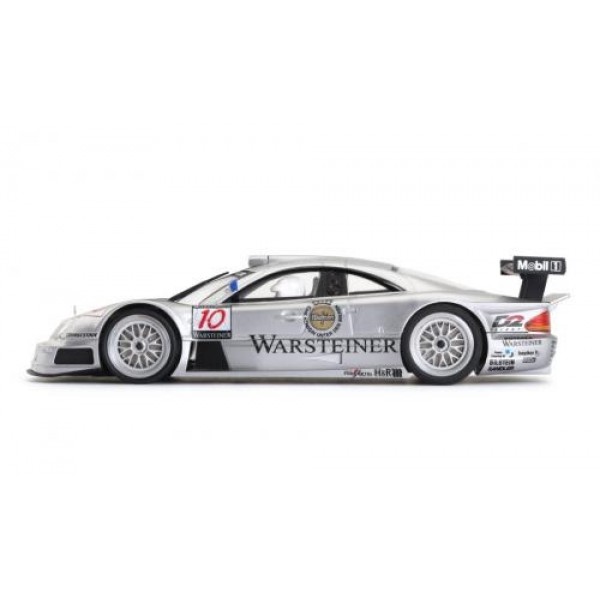

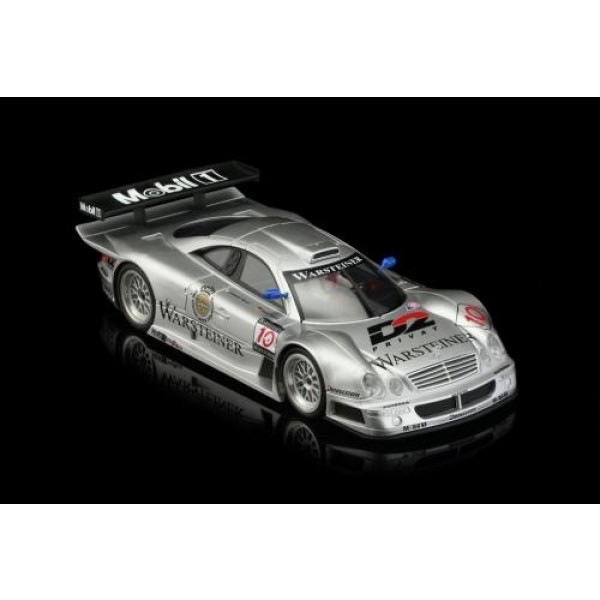

RS0093 Revo Slot Mercedes CLK GTR - #10 D2 Warsteiner

The Revo Slot Mercedes CLK GTR is a Race Ready, High Performance, Ready to Run Slot Car.
With a Black Anodised, CNC Aluminium Chassis, Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. There are Ball Bearings fitted to both front and rear axles, Floating Body Mount System, and a Spring Swivel Guide. The Mercedes CLK GTR is supplied with a Traction Magnet (not fitted), and a Deep Guide Blade for Routed Wooden Tracks.

Chassis developed by BRM

All Revo Slot Car Chassis are Designed and Developed by BRM. They Perform well and
are well supported with a full range of Replacement and Upgrade parts available. A Parts Manual is included with each Car.

The Revo Slot Cars are very well designed and constructed, with excellent paint finish and high quality tampo printing. They perform well and are great to drive. They have rapidly become very popular among Racers and Enthusiasts a like.

History

The Mercedes-Benz CLK GTR (W297) is a race car designed and developed by Mercedes Benz in collaboration with AMG, to compete in the, then new FIA GT Championship series in 1997. The Mercedes Benz CLK GTR was designed primarily as a Race car, with the production of Road Cars necessary to meet homologation requirements for racing. The Mercedes Benz CLK GTR performed well and competed successfully in 1997, The Race car was then modified in 1998 for Le Mans and Renamed the CLK LM. The project finally ended 1999 when the car was replaced by the Mercedes Benz CLR Le Mans Prototype.

Drivers: Alessandro Nannini (ita) and Marcel Tiemann (Ger)
Car: Mercedes CLK GTR - #10 D2 Warsteiner
Race: FI GT Championship 1997 – GT1 Class
Team: Team Persson Motorsport

Revo Slot

The Revo Slot Car Company was formed in partnership with BRM, with the aim of producing High Quality 1/32 Scale Slotcars for the Racer or Enthusiast.

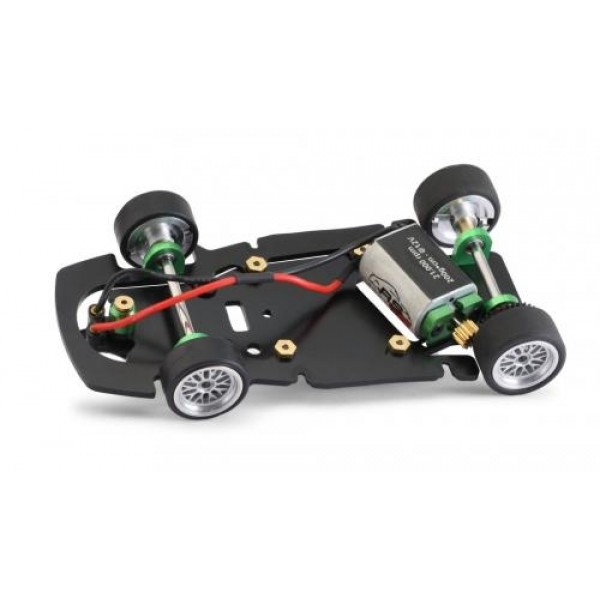

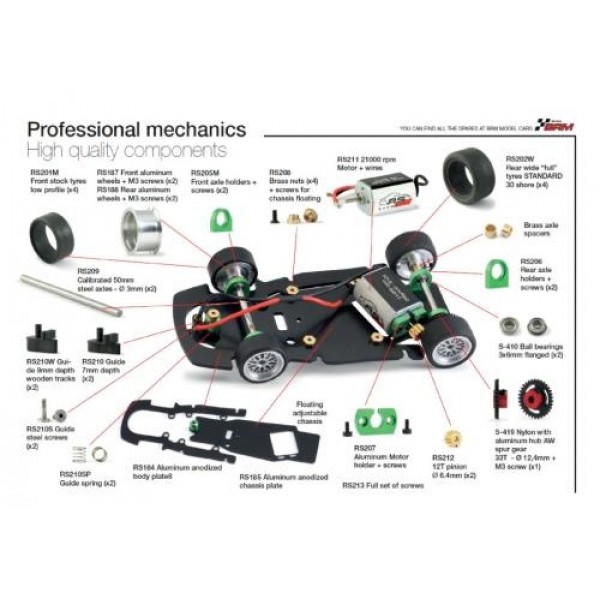

The BRM developed chassis consists of a, CNC Aluminium Chassis with a floating body mount system. The chassis is fitted with Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The car is also supplied with Ball Bearings fitted front and rear with a Spring Swivel Guide. A deep guide for wooden routed tracks is also supplied with the Car.

The Revo Slot Cars are very well designed and constructed, with excellent paint finish and tampo printing. They perform well and are great to drive. They have rapidly become very popular among Racers and Enthusiasts a like.

Key Features

Highly Detailed body
Lightweight Detailed Cockpit with Driver figure
Anodised CNC Aluminium Chassis with floating body mount
Precision Ball Bearings front and Rear
Aluminium Wheels Front and Rear
Aluminium Motor mount and Axle carriers
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years

Specs

Motor: Revo Slot 21 000rpm FK130 Motor 200gcm @ 12v (RS211)
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 12T Brass (RS212 12T Ø6.4 mm Brass Pinion)
Spur Gear: 33T (S419 33T Ø12.4 mm Nylon Anglewinder Spur Gear)
Gear Ratio: 12:33
Bearings: Ball Bearings Front and Rear (S410 3 x 6 mm Flanged Ball Bearings)
Guide: Spring Swivel Guide (RS210 20.6 x 7 mm Fitted + RS210W 20.7 x 9 mm Deep Guide Supplied)
Axle/Hub Width: 64 mm Front and 64 mm Rear
Axle Diameter: Ø3mm x 50 mm Hardened Steel (RS209)
Wheels: Aluminium 16 x 9 mm front (RS187) and 15.5 x 10.5 mm Rear (RS188)
Front Tyre Diameter and Width: 21 x 8.9 mm (RS201M)
Rear Tyre Diameter and Width: 21.5 x 11 mm (RS202W)
Magnatraction: No (Rectangular Traction Magnet Supplied)
Overall Length: 152 mm
Wheelbase: 83 mm
Car Width: 65 mm
Car Height: 34 mm
Car Weight: 109 g
Chassis Weight: 79 g
Body Weight: 28 g
Digital: No but Upgradeable
Body: High Detail body with Lightweight Interior
Driver: Driver figure
Lights: No
Class: GT1 Class
Scale: 1/32

Contents

1 x RS0093 Revo Slot Mercedes CLK GTR - #10 D2 Warsteiner
1 x Deep Wood Guide
1 x Magnet

Model: RS0093
Issued: July 2021
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
