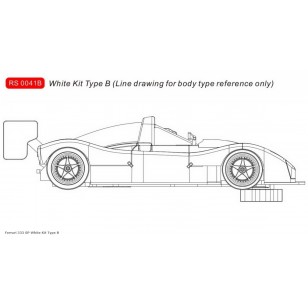

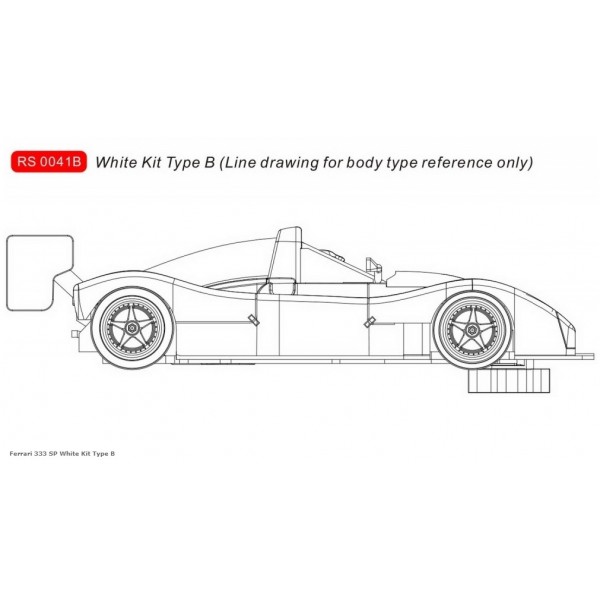

RS0041b Revo Slot Ferrari 333SP – Type B White Race Kit

Revo Slot

The Revo Slot Car Company was formed in partnership with BRM, with the aim of producing High Quality 1/32 Scale Slotcars for the Racer or Enthusiast.

The BRM developed chassis consists of a, CNC Aluminium Chassis with a floating body mount system. The chassis is fitted with Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The car is also supplied with Ball Bearings fitted front and rear with a Spring Swivel Guide. A deep guide for wooden routed tracks is also supplied with the Car.

The Revo Slot Cars are very well designed and constructed, with excellent paint finish and tampo printing. They perform well and are great to drive. They have very rapidly become very popular among Racers and Enthusiasts a like.

History

The Ferrari 333 SP is a sports prototype race car that was built by Italian race car manufacturer Dallara and later by Michelotto to compete in the World Sports Car championship for Ferrari.

The Ferrari 333 SP was unveiled at the end of 1993, at the behest of amateur racer Giampiero Moretti (owner of the MOMO auto parts business), the 333 SP marked Ferrari's official return to sports car racing after a 20-year absence. The car was built to compete in the IMSA's new WSC class, which replaced the previous GTP cars.

Key Features

Detachable Magnetic Rear Wing
Highly Detailed body – Shorter Bonnet with No Wheel Arch Fins
Lightweight Detailed Cockpit with Driver figure
Anodised CNC Aluminium Chassis with floating body mount
Precision Ball Bearings front and Rear
Aluminium Wheels Front and Rear
Aluminium Motor mount and Axle carriers
Decals
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years

Specs

Motor: Revo Slot 21 000rpm FK130 Motor 200gcm @ 12v
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 12T Brass
Spur Gear: 33T
Gear Ratio: 12:33
Bushes: Ball Bearings Front and Rear
Guide: Spring Swivel Guide (20.6 x 6mm Fitted + Deep Guide Supplied)
Magnatraction: No (Rectangular Traction Magnet Supplied)
Overall Length: 153 mm
Wheelbase: 88 mm
Car Width: 64 mm
Car Height: 33 mm
Weight: 107 g
Axle/Hub Width: 61 mm Front and 62.5 mm Rear
Axle Diameter: 3mm Hardened Steel
Wheels: Aluminium 14.7 x 9.3 mm front and 14.7 x 10.5 mm Rear
Front Tyre Diameter and Width: 19 x 9 mm
Rear Tyre Diameter and Width: 21 x 11mm
Digital: No but Upgradeable
Body: High Detail body
Driver: Driver figure
Lights: No
Class: LMP1 – Le Mans
Scale: 1/32

Contents

1 x RS0041b Revo Slot Ferrari 333SP – Type B White Race Kit
1 x Deep Wood Guide
1 x Magnet

Model: RS0041b
Issued: November 2019
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
