The Revo Slot Car Company was formed in partnership with BRM, with the aim of producing High Quality 1/32 Scale Slotcars for the Racer or Enthusiast. A chinese company with a long history of producing high quality slot car bodies for third parties is behind the Revo Slot Car Company.
BRM was assigned the task of chassis design and development. The BRM developed chassis consists of a CNC Aluminium Chassis with a floating body mount. The chassis is fitted with Aluminium Axle Carriers and Motor Mounts with Aluminium wheels Front and Rear. The car is also supplied with Ball Bearings fitted front and rear with a Spring Swivel Guide. A deep guide for wooden routed track is also supplied with the Car.
The Revo Slot Cars are very well designed and constructed, with excellent paint finish and tampo printing. They perform well and are great to drive, and are also great value for money. They have very rapidly become very popular among Racers and Enthusiasts alike.
Drivers: Bouchut/Belloc/Monteiro

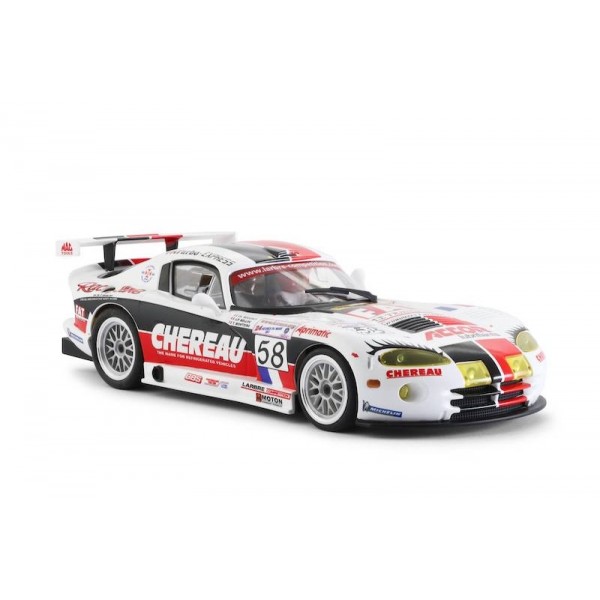

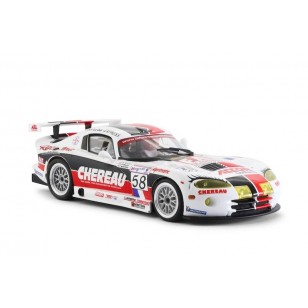

Car: Dodge Viper GTS-R - #58
Race: 24hr Le Mans 2001
Team:
Key Features
Highly Detailed body
Detailed Interior with Driver figure
Anodised CNC Aluminium Chassis with floating body mount
Precision Ball Bearings front and Rear
Aluminium Wheels Front and Rear
Aluminium Motor mount and Axle carriers
Age Suitability 14+
Safety Notice: Warning! This product is not suitable for children under 14 years
Specs
Motor: Revo Slot 21 000rpm FK130 Motor 200gcm @ 12v
Motor Configuration: Rear Mounted Angle Winder Motor with Rear Wheel Drive
Pinion: 12T Brass
Spur Gear: 33T
Gear Ratio: 12:33
Bushes: Ball Bearings Front and Rear
Guide: Spring Swivel Guide (20.6 x 6mm Fitted + Deep Guide Supplied)
Magnatraction: No (Rectangular Traction Magnet Supplied)
Overall Length: 142 mm
Wheelbase: 78 mm
Car Width: mm
Car Height: 38 mm
Weight: 100g
Axle/Hub Width: 61.5 mm Front and 63 mm Rear
Axle Diameter: 3mm Hardened Steel
Wheels: Aluminium mm front and mm Rear
Front Tyre Diameter and Width: mm
Rear Tyre Diameter and Width: mm
Digital: No but Upgradeable
Body: High Detail body with half height interior
Driver: Half Height Driver figure
Lights: No
Class: GT, Endurance
Scale: 1/32
Contents
1 x RS0034 Revo Slot Dodge Viper GTS-R - #58 Chereau
1 x Wood Guide
1 x Rectangular Bar Magnet
Model: RS0034
Issued: July 2019
Shipping Weight: 0.40kgs
Manufactured by: Revo Slot
Additional Information
Scale | 1/32 |
---|
