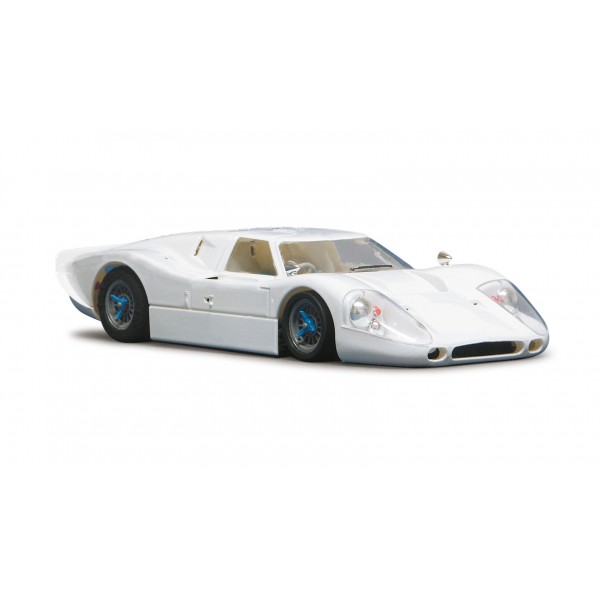

NSR1023SW NSR Ford Mk IV – White Body Kit

The Ford Mk IV from the NSR “Classic” Range, is a High Performance Classic Race Car designed and built using the latest technology. It has been designed to be competitive straight out of the box, using High-Tech components for the best performance on track.

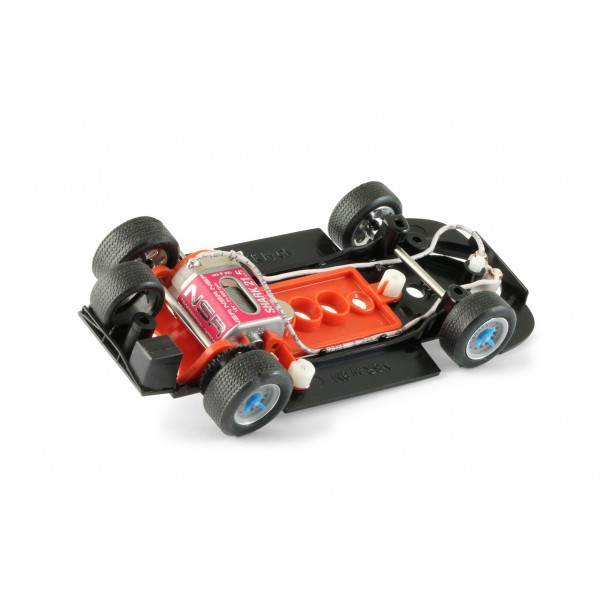

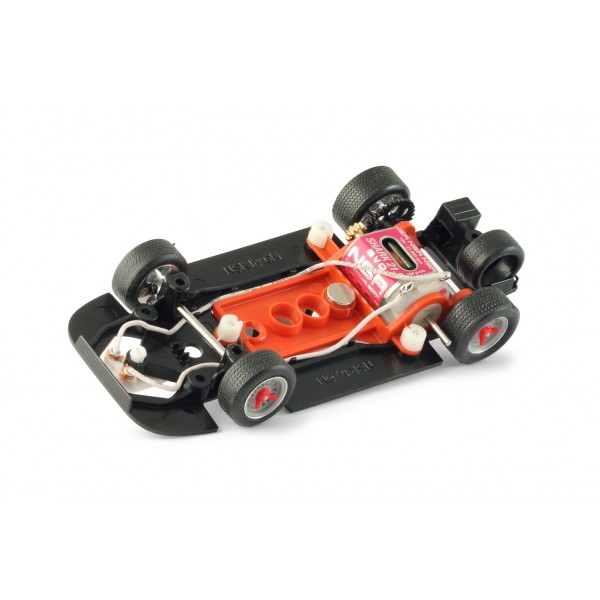

The NSR Ford Mk IV is supplied with a Shark 21.5 EVO Short-Can Motor in Sidewinder Configuration and 11:32 gearing. It is fitted with the new NSR Racing Bushes, and fitted with the new EVO Sidewinder Motor Mount, with Air System Aluminium Rear Rims with Soft Compound Tyres. The Chassis also features Adjustable Height Front axle.

The NSR Classic Model Cars are designed and tested, to be the best in class, exclusively by the NSR Factory. And all NSR Cars are Made in Italy, and certified hand finished, so they may have imperfections which are not defects, but rather witness of the handmade work.

This Kit requires Assembly and Paint to complete

Key Features

White Body Kit
High Performance Classic Race Car
High Tech NSR Components
Lightweight
New Racing Bushes for EVO Motor Mount
New EVO Narrowed Sidewinder Motor Mount
Sidewinder Configuration
Aluminium Front and Rear wheels (Air System Rear Wheels)
Adjustable Height Front Axle
Magnatraction
Detailed White Body (Requires Assembly)
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years. Contains small parts.

Specs

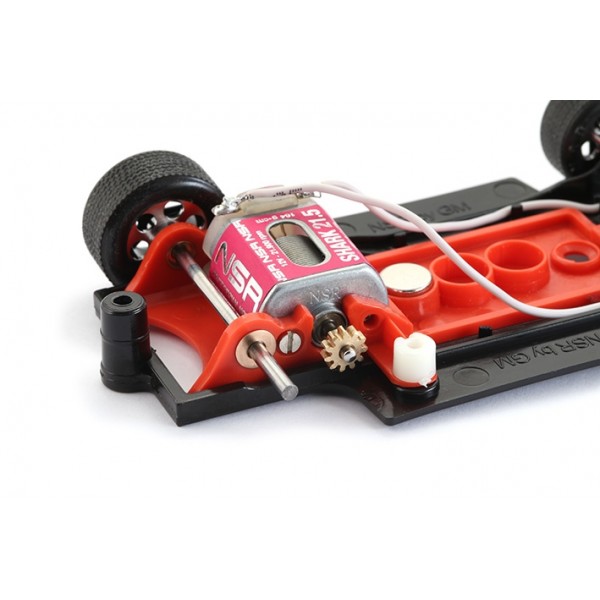

Motor: Shark 21.5 EVO, 21,900 rpm @12v 164g/cm Short-Can motor (NSR3041)
Pinion: 11T - Sidewinder Extralight 6.75mm dia (NSR6911)
Spur Gear: 32T - Extralight Aluminium 17.5 mm dia (NSR6032)
Gear ratio: 11:32
Motor Configuration: Sidewinder Motor, with Rear 2 Wheel drive
Motor Support: Narrowed Sidewinder Evo Motor Support (NSR1270)
Bushes: Brass - New NSR Racing Bushes (NSR4805)
Guide: Low Profile, Low Friction Racing Pickup Guide(NSR4841)
Magnatraction: 8 x 4 mm Round Neodymium Magnet
Wheels: Aluminium 16 x 8 Front (NSR5001) and Aluminium Air System 16 x 8 Rear (NSR5002)
Overall length: 138 mm
Width: 60.5 mm
Height: 33 mm
Wheelbase: 73.5 mm
Rear Axle to Guide Distance: 99 mm
Body Weight: 17 g
Total Weight: 72 gm
Axle/Hub width: 58 mm Front, and 60 mm Rear
Tyre diameter/width: 20 x 8.5 mm No-Friction Front (NSR5233), and 21 x 10 mm SuperGrip Rear (NSR5236)
Lights: No
Digital Ready: No
Body Detail: High Detail
Class: Classic
Scale: 1/32

Contents

1 x NSR1023SW NSR Ford Mk IV – Body Kit Clear

Issued: July 2005
Model: NSR1023SW
Shipping Weight: 0.4kg
Manufacturer: NSR
