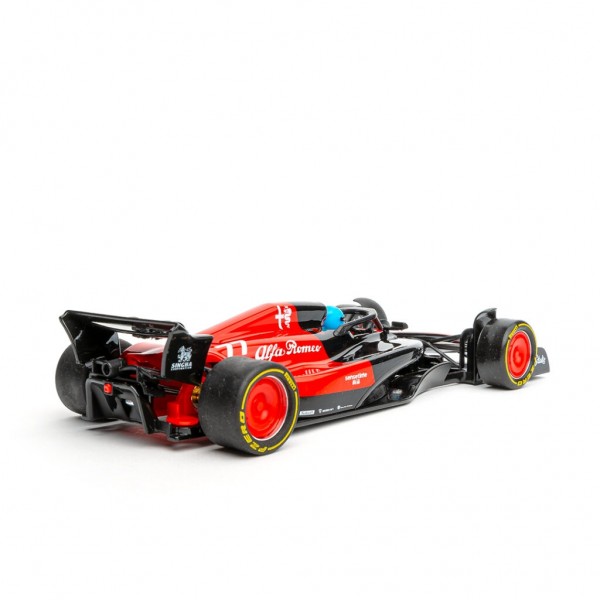

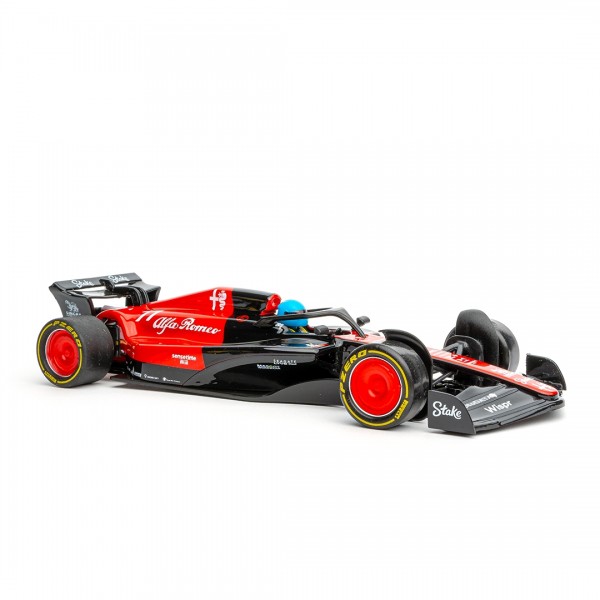

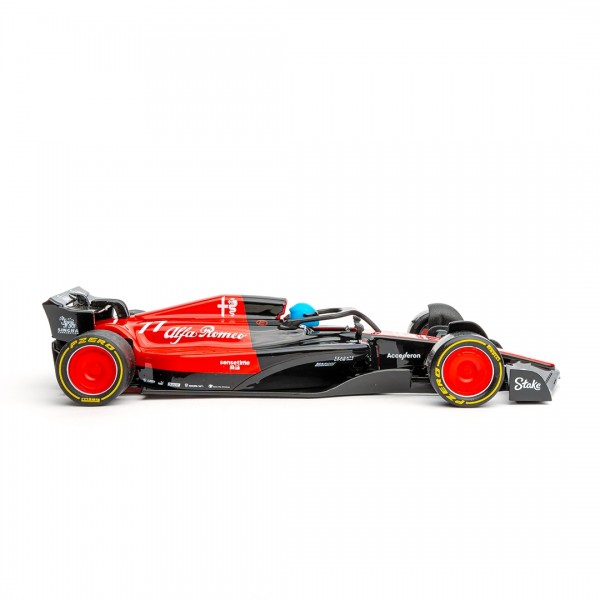

NSR0434IL Scaleauto Formula 22 – #77 Rosso Quadrifoglio Livery

NSR introduces cars from the modern Era of Formula 1. The NSR Formula 22 cars are F1 Cars inspired by cars from the 2022 – 2026 seasons. The Formula 22 cars feature the pure shapes from 2022 Season Formula 1 cars, with a redesigned driver with a detailed and realistic Helmet.

The Formula 22 cars are designed for maximum performance and are extremely competitive on the Track. The Cars can be tuned for maximum performance to suit any tack using different parts such as Wheels, Tires, Suspension, Chassis and Motor Mounts of various Hardnesses and/or by adjusting Front Axle Height, Motor attachment points, Body height, Car Weights etc.

All NSR Cars are Made in Italy, and certified hand finished, so they may have imperfections which are not defects but rather witness of the handmade work.

Key Features

Generic Formula 2022 Cars
High Performance
Lightweight
Adjustable Height Front and Rear axles
In-Line Long-Can motor
Motor pod with 5 fixing points and available in 4 Compounds
Chassis available in 4 Compounds
Aluminium Front and Rear wheels (Air System Rear Wheels)
Detailed Body
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 Years because of small parts which can present a choking hazard

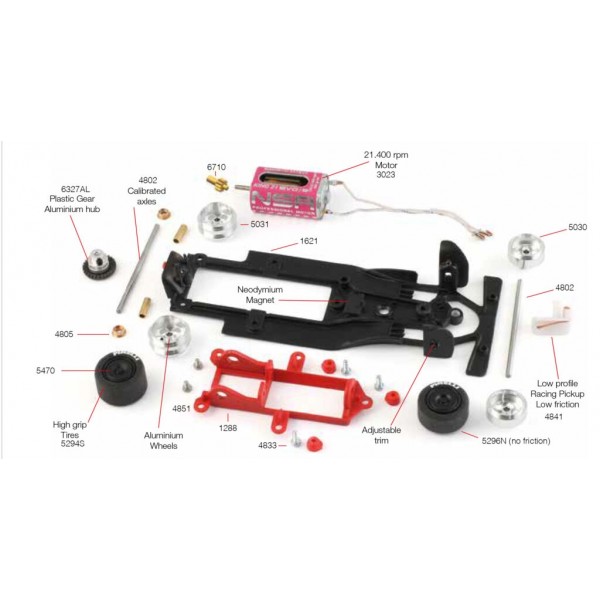

Specs

Motor: NSR King 21k Evo/3, 21,400 rpm Long-Can motor (NSR3023)
Pinion: 10T Inline Formula 22 Ø6mm (NSR6710EVO3)
Crown Gear: 27T In-Line Plastic Gear with Alu Hub(NSR6327AL)
Gear ratio: 10:27
Motor Configuration: In-Line Motor, with Rear 2 wheel drive
Bushes: Bronze No Friction Oil Less (NSR4805)
Guide: Low Profile, Low Friction Racing Pickup Guide (NSR4802)
Magnatraction: Yes – Neodymium Rectangular Magnet
Alloy wheels: Ø16.5 x 9.5mm Front (NSR5030) and Ø16.5 x 10 mm Air System Rear (NSR5231)
Tyre diameter/width: Ø19.5 x 9.5 mm Slick Front (NSR5296N), and Ø 20 x 13 mm SuperGrip Rear (NSR5294S)
Axle/Hub width: 67 mm Front, and 62 mm Rear
Overall length: 158 mm
Width: 65 mm
Height: 28 mm
Wheelbase: 102 mm
Rear Axle/Guide Distance: 107 mm
Body Weight: 11 g
Chassis Weight: 63g
Total Weight: 74 gm
Lights: No
Digital Ready: No
Body Detail: High Detail
Class: Formula 22
Scale: 1/32

Contents

1 x NSR0434IL Scaleauto Formula 22 – #77 Rosso Quadrifoglio Livery

Issued: Oct 2024
Model: NSR0434IL
Shipping Weight: 0.35 kg
Manufacturer: NSR
