NSR0096AW NSR Corvette C7R – #64 Redline Shanghai 2018

The Chevrolet Corvette C7R is a High Performance, High Quality, Professional GT Racing car, designed and built using the latest technology. It has been designed to be competitive straight out of the box, using the best high tech components, for the best performance on track and still be a detailed and accurate Scale Model.

The NSR Chevrolet Corvette C7R is one of the quickest and best handling cars in its class.

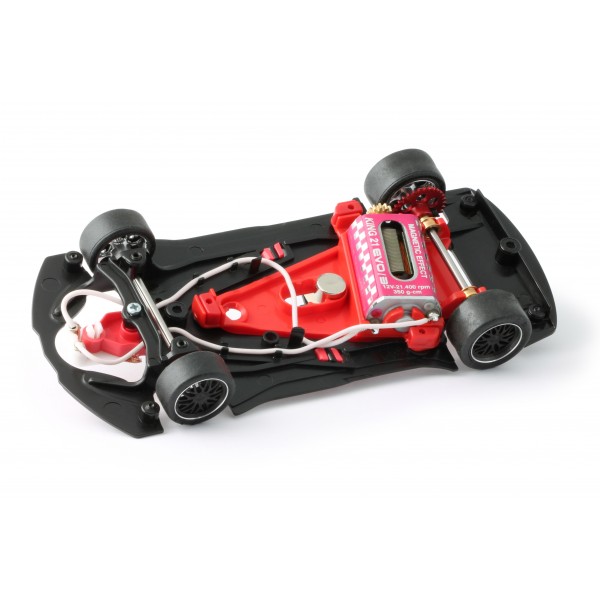

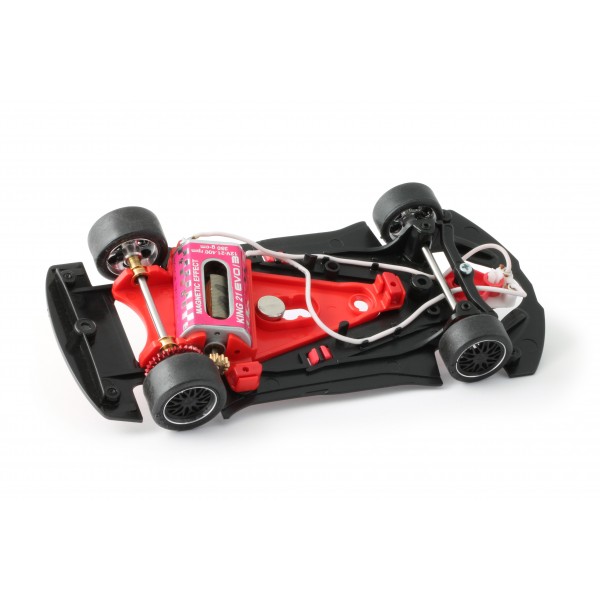

The Corvette C7R is supplied with a King 21K Evo 3, Long-Can Motor in Anglewinder Configuration and 13:31 gearing. It is fitted with the NSR Racing Bushes, Anglewinder Motor pod, with Air System Aluminium Rear Rims with Super Grip Soft Compound Tyres. This Corvette C6R Chassis is fitted with the Drop Arm Guide.

Key Features

Requires Paint and Assembly
High Performance GT Race Car
High Tech NSR Components
Lightweight
Corvette C7R Chassis with Drop Arm Guide
Evo Type Chassis for In-Line, Sidewinder and Anglewinder Triangular Motorpods
Anglewinder Configuration
Chassis compatible with Triangular Anglewinder, In-Line and Sidewinder Motorpods
Aluminium Front and Rear wheels (Air System Rear Wheels)
Adjustable height front axle
Drop arm type Guide Blade with screw to allow fixed Position
Magnatraction
White Detailed Body
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years. Contains small parts.

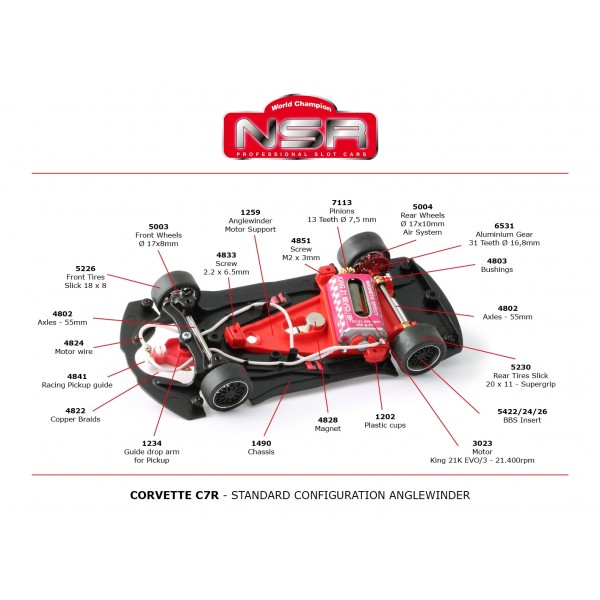

Specs

Motor: King 21K EVO/3 - 21 400 rpm @12v 350g/cm Long-Can Motor (NSR3023)
Pinion: 13T – Anglewinder Extralight 7.5 mm dia (NSR7113)
Crown Gear: 31T - Anglewinder Extralight Aluminium 16.8mm dia (NSR6531)
Gear ratio: 13:31
Motor Configuration: Anglewinder Motor, with Rear 2 wheel drive
Motor Support: Anglewinder Motor Support – Extra Hard (NSR1259)
Bushes: Self Lubricating Bronze
Guide: Low Profile Low Friction Racing Guide(NSR4841) with Drop Arm (NSR1234)
Magnatraction: 8 x 4 mm Round
Wheels: Aluminium 17 x 8 Front (NSR5003) and Aluminium Air System 17 x 10 Rear (NSR5004)
Overall length: 141.5 mm
Width: 64.7 mm
Height: 35 mm
Wheelbase: 84.5 mm
Rear Axle to Guide Dist: 102 mm
Body Weight: 21.5 g
Total Weight: gm
Axle/Hub width: 59 mm Front, and 62 mm Rear
Tyre diameter/width: 18 x 8 mm No-Friction Front (NSR5229), and 20 x 11 mm Super Grip Rear (NSR5230)
Lights: No
Digital Ready: No
Body Detail: High Detail
Class: GT3
Scale: 1/32

Contents

1 x NSR0096AW NSR Corvette C7R – #64 Redline Shanghai 2018

Issued: March 2019
Model: NSR0096AW
Shipping Weight: 0.4g
Manufacturer: NSR
