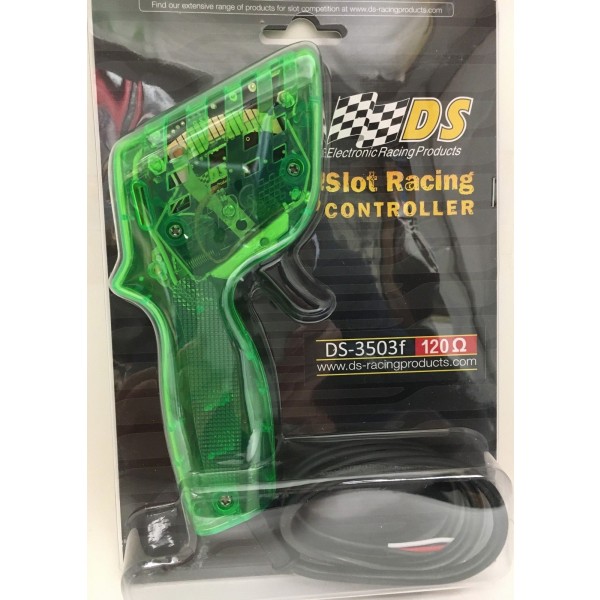

DS3503F DS 120Ω Basic-3 Controller for AFX - Unterminated

The DS Electronic AFX Controller is a High Quality, Economic, Resistor Type Controller, ideal for racers looking to replace their Standard AFX Set Controllers.

This is the latest version of the DS Basic Controller, which has been redesigned with a Printed Circuit board with 18 Copper Segments and a Resistor Array for better reliability, durability and smoother operation. The DS Basic-3 Controller is now available in 6 different Resistances, 120 Ohm and 55 Ohm for AFX Track Systems, and 45 Ohm, 35 Ohm, 25 Ohm and 15 Ohm for Carrera, SCX, Scalextric and Ninco Track Systems.

Note: The DS Controllers are supplied unterminated and requires the AFX Plug from your old controller. If you send in your plug, we can terminate your controller for you.

To Terminate the Controller yourself, Just cut the Plug off AFX Controller and Solder the White and Black Controller wires to AFX Plug. And then Blank off the Red - Brake Wire (not required for AFX Tracks).

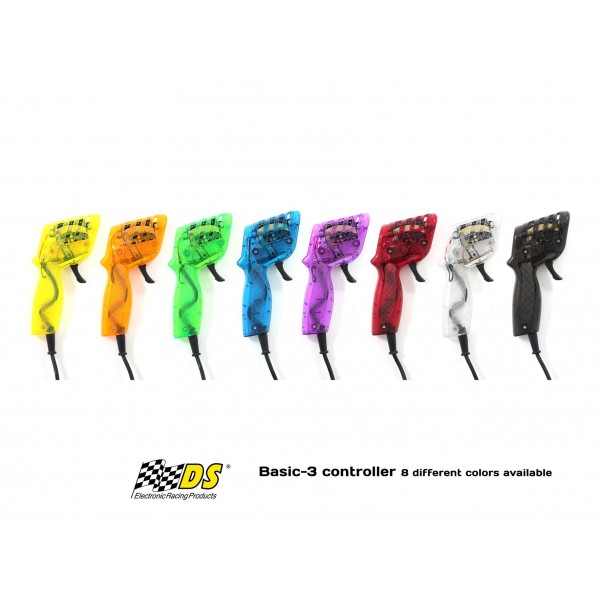

The DS Controller is available in 8 different colours : Green, Blue, Yellow, Orange, Red, Purple, Black and Clear. The colour you receive is random but if you would like a particular color, please email us with the color you choose and we’ll do our best to accommodate.

Key Features

Requires AFX Plug
For use with any Track System, Requires correct plug
Resistance Type Controller
Strong Metal Frame construction
Resistor Array
18 Throttle Steps
Short Circuit Protection
New Ergonomic Design DS Handle
90 cm Cable
8 Colour Choices Green, Blue, Yellow, Orange, Red, Purple, Black and Clear
Age Suitability 14 years

Warning: This product is not a toy, not suitable for children under 14 years

Specs

Controller Type: Resistance Controller with Metal Frame
Resistor: 120Ω Resistor Array
Operating Voltage: 12 – 19 v
Adjustable Trigger: No
Cable: 90 cm Cable, with Cable relief
Connector: No Unterminated

Contents

1 x DS3503f DS 120Ω Basic-3 Controller - Unterminated

Model: DS3503f
Shipping Weight: 0.3kgs
Manufactured by: DS Electronics
