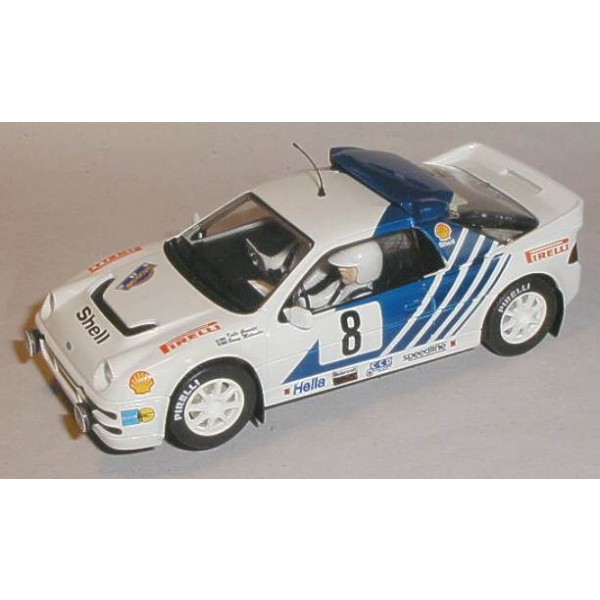

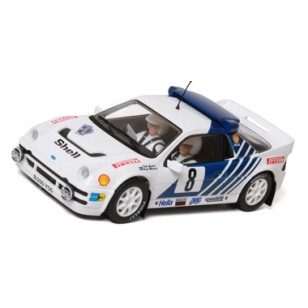

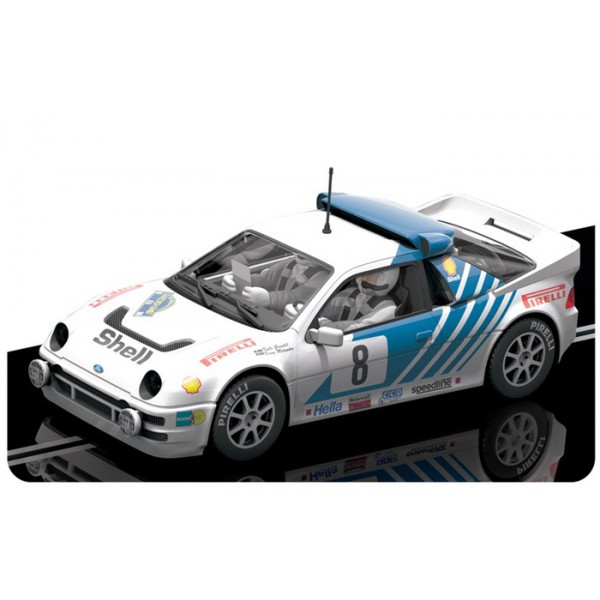

C3156 Scalextric Ford RS200 1986 – Rally of Sweden #8

History

The Ford RS200 was produced by Ford between 1984 to1986. It is a purpose built mid engine, 4-wheel drive Group B rally car, designed to comply with FIA homologation regulations at the time,  and to compete with cars from Audi and Peugeot. As part of the homologation regulations, 200 road legal versions of the car had to be built. The RS 200 was a unique design, featuring a plastic/fibreglass composite body designed by Ghia,and powered by a 1.8 litre, single turbocharged Ford/Cosworth "BDT" engine, producing up to 450 horsepower (340kW) in race trim.  The RS 200 was regarded to have the best balance and poise of any of its competitors, but failed to be competitive. Its power to weight ratio was poor by comparison, and its engine produced notorious low-RPM lag, making the car difficult to drive. The car needed more development time to be competitive, and Group B rally was banned mid way through the 1986 season.

Key Features

Drivers: Kalle Grundel - Benny Melander
Race: 1986 Rally of Sweden #8

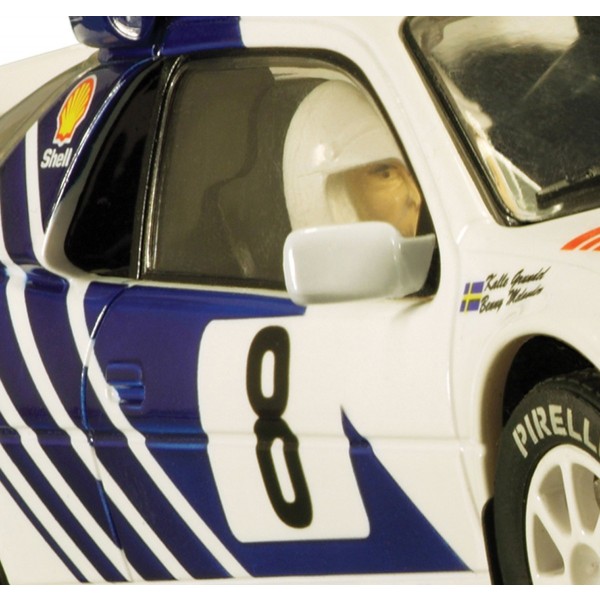

High Detail Body
Digital Plug Ready (DPR)
Easy Change Pick-ups

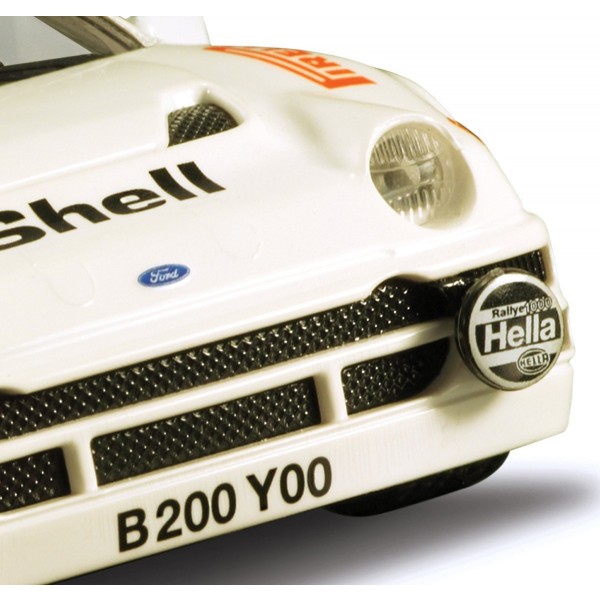

Xenon effect headlights and working rear lights
Magnatraction System

Safety Notice: Warning! This product is not suitable for children under 36 months because of small parts which can present a choking hazard.

Model: C3156
Issued: July 2011
Shipping Weight: 0.3kg
Manufacturer: Scalextric

Specs

Motor:  Mabuchi SP, 18 000 rpm
Motor Configuration: Rear Mounted Side-winder Motor with Rear wheel drive
Pinion: 11T Plastic
Spur Gear: 36T Plastic
Gear ratio: 11:36
Guide: Easy Change Pick-ups (two spare)
Magnatraction: 2.5mm Rectangular bar magnet with 200g down-force
Overall length: 126mm
Width: 55mm
Height: 42mm
Wheelbase: 79mm
Weight: 82gm
Axle/Hub width: 54 mm Front, and 54 mm Rear
Axle Diameter: 2.38mm (3/32)
Wheels: Plastic front and rear
Front Tyre diameter/width: 20(ext), 13(int) x 8 mm
Rear Tyre diameter/width: 20(ext), 13(int) x 8 mm
Lights: Front Xenon Effect Headlights and Rear Lights
Digital Plug Ready (DPR): Yes, using C8515 Easyfit Digital Plug
Body Detail: High Detail
Class: Classic Rally
Scale: 1/32
