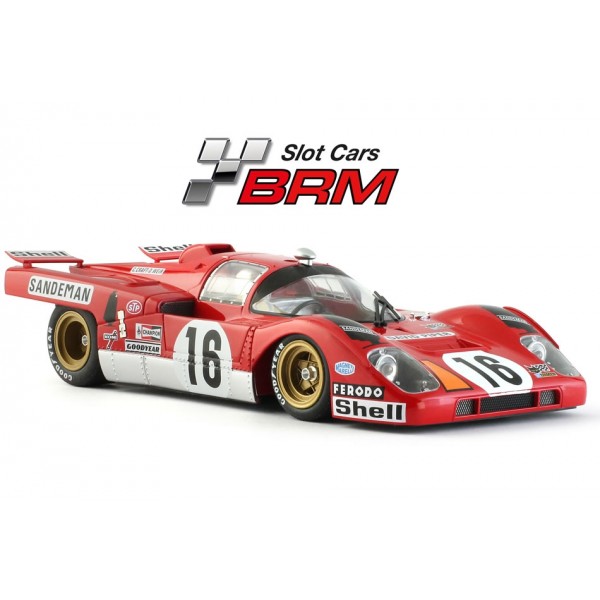

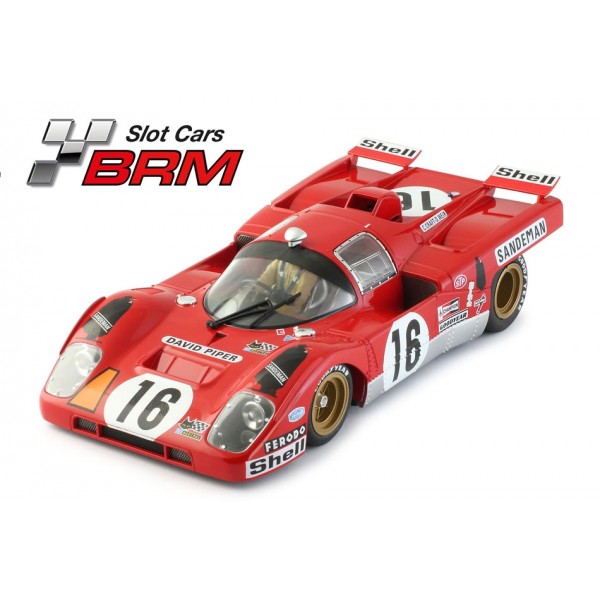

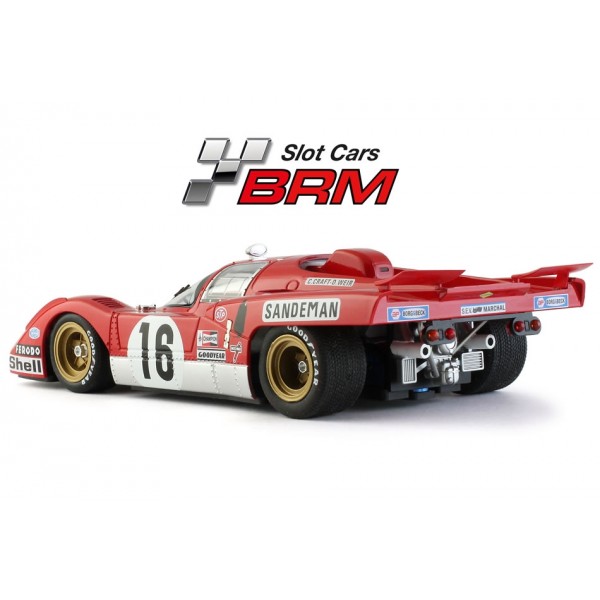

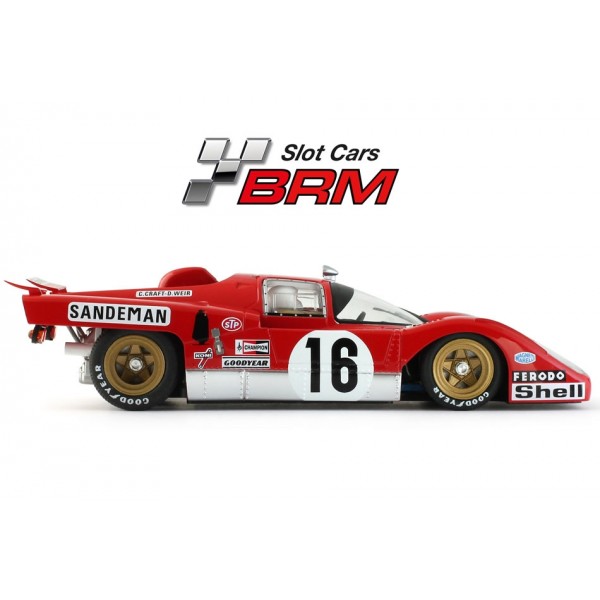

BRM173 BRM Ferrari 512M #16 Sandeman – 24hr Le Mans 1971

The BRM Opel Ferrari 512M is a detailed high quality, 1/24 scale, Ready to Run Competition Slot Car. Featuring a specially designed two-piece CNC Anodised Aluminium Chassis, with Independent Cambered Front wheels, and Single Piece Rear Axle.

The Chassis also features an Blue Anodized Aluminium Motor Mount, and Front and Rear Axle Carriers with Ball Bearing Rear Axle and Spring Guide Blade. This car is powered by the BRM Blue 19 000 rpm Short-Can motor mounted in Angle-winder Configuration.

The detailed body features a high quality deep gloss paint finish, sharp tampo printing with a detailed Lightweight interior with driver figure.

Car: Ferrari 512M #16 Sandeman – 4th Place
Driver: Chris Craft/David Weir
Race: 24hr Le Mans 1971
Team: David Piper Autorace Team

Key Features

New Racing Chassis
CNC Two Piece Black Anodized Aluminium Chassis
BRM Black 25 000rpm Long-Can Motor - Angle-winder configuration
Ball Bearing Front and Rear Axles
Aluminium Wheels Front and Rear
Detailed Body with High quality deep gloss paint finish
Floating Body Mount System
Lightweight Detailed Interior
Blue Aluminium Body Mounts – Fast Opening System
Digital Ready Chassis (Machined to accept Digital Chips)
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years because of small parts which can present a choking hazard

Specs

Motor: BRM T-RS Evo (Black) 25 000rpm Long-Can motor (S033S)
Pinion: 11T AW Brass Pinion Ø6.4 mm (S075)
Spur Gear: 41T Nylon AW Spur Gear Ø21.6 mm dia (S066S)
Gear ratio: 11:41
Motor Configuration: Rear Mounted Angle-winder Motor, with Rear 2 wheel drive
Guide: Sprung Swivel Guide (23 x 8mm) with replaceable braids (S026SS)
Magnatraction: No
Wheels: Aluminium Front Wheels Ø17.5 x 11 mm (S084) and Rear Ø17.5 x 15 mm (S085)
Tires: Ø25 x 12.6 Front Hard (S056T) and Ø27 x 16.5 Shore 30 Standard Rear (S057T)
Overall length: 172mm
Width: 86.5mm
Height: 42mm
Wheelbase: 97mm
Axle/Hub width: 75.5 mm Front, and 80.5mm Rear
Body Weight: 48 g
Chassis Weight: 134 g
Total Weight: 182 gm
Lights: No
Digital Ready: No, but chassis will accept Digital Chips
Body Detail: High Detail Resin body with Lexan Interior
Class: Classic
Scale: 1/24

Contents

1 x BRM173 BRM Ferrari 512M #16 Sandeman – 24hr Le Mans 1971
Parts Manual

Issued: July 2024
Model: BRM173
Shipping Weight: 0.6 kg
Manufacturer: BRM
