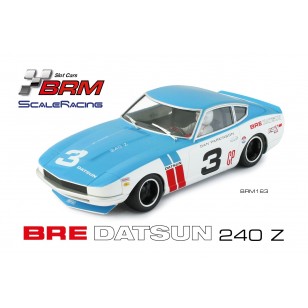

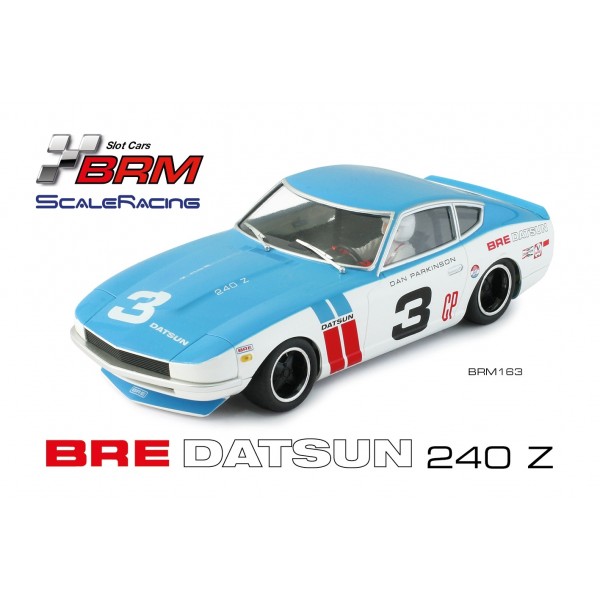

BRM163 BRM Datsun 240Z BRE #3 - Champion SCCA 1970

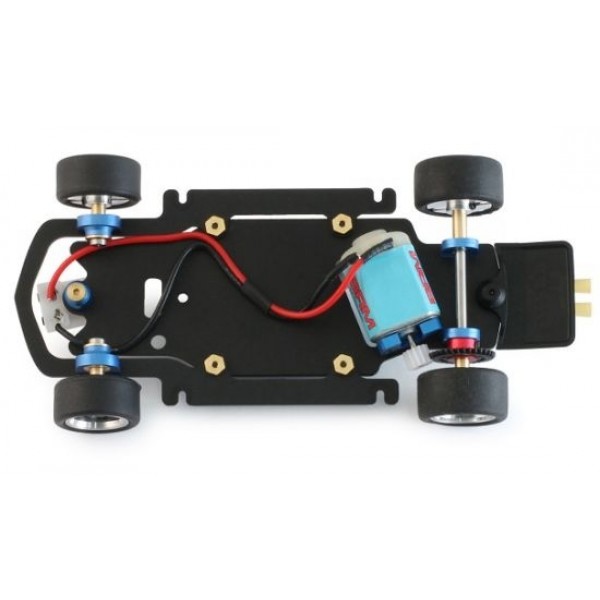

The BRM Datsun 240Z, is a Detailed High Quality, 1/24 scale, Ready to Run Competition Slot Car. Featuring a Specially Designed CNC Black Two Piece Anodised Aluminium Chassis with Cambered Independent Front Wheels. The Chassis features a Blue Anodized Aluminium Motor Mount, and Front and Rear Axle Carriers. The Rear Axle is Ø3mm and fitted with Ball Bearings, and the Front Axles are Bushed Independent Stub Axles. The car is powered by the BRM Blue 19 000 rpm Short-Can motor mounted in Angle-winder Configuration.

The detailed body features a High Quality, Deep Gloss Paint Finish, with Sharp Tampo Printing and a Lightweight interior complete with driver figure.

Drivers: Dan Parkinson
Race: SCCA 1970
Team: BRE Datsun Racing Team

Key Features

New CNC Two Piece Black Anodized Aluminium Racing Chassis
BRM Blue 19 000rpm Short Can Motor - Angle-winder configuration
Cambered Independent Front Wheels
Ball Bearing Rear Axles
Aluminium Wheels Front and Rear
Detailed Body with High Quality deep gloss paint finish
Floating Body Mount System
Detailed Interior with Driver Figure
Digital Ready Chassis (Machined to accept Digital Chips)
Age Suitability 14+

Safety Notice: Warning! This product is not suitable for children under 14 years because of small parts which can present a choking hazard and functional sharp edges. This product contains magnets.

Specs

Motor: BRM Blue 19 000rpm Short-Can Motor (S417)
Pinion: 12T AW Nylon Pinion Ø6.8 mm (S420)
Spur Gear: 33T Nylon AW Spur Gear Ø12.4mm (S419)
Gear ratio: 12:33
Motor Configuration: Rear Mounted Angle-winder Motor, with Rear 2 wheel drive
Guide: Sprung Swivel Guide (23 x 7 mm) with replaceable braids (S026SS)
Magnatraction: No
Alloy wheels: 15 x 10 mm Front (S402KF) and 15.7 x 11 mm Rear (S402KR)
Axle/Hub width: 74.5mm Front, and 75mm Rear
Tyre diameter/width: 22.5(ext), 15(int) x 11 mm Hard Front (S403K), and 23 (ext), 15(int) x 12.5mm Standard Rear (S404K)
Overall length: 173 mm
Width: 71 mm
Height: 48 mm
Wheelbase: 93 mm
Chassis Weight: 85 gm
Body Weight: 45 gm
Weight: 130 gm
Lights: No
Digital Ready: No, but chassis will accept Digital Chips
Body Detail: High Detail Body with Lexan Interior
Class: GT1
Scale: 1/24

Contents

1 x BRM163 BRM Datsun 240Z BRE #3 - Champion SCCA 1970

Issued: May 2024
Model: BRM163
Shipping Weight: 0.7kg
Manufacturer: BRM
